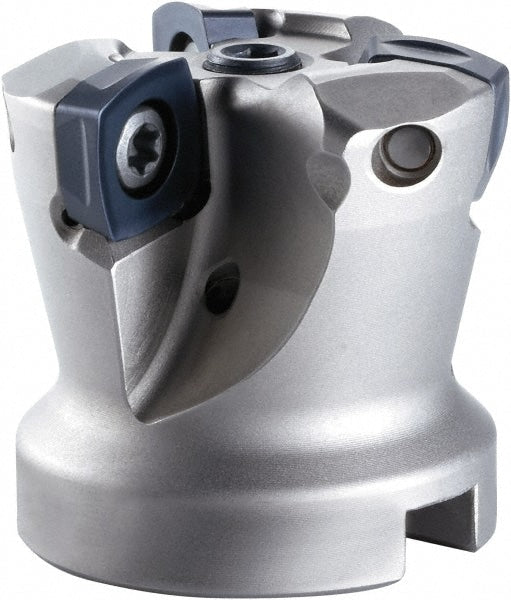

4" Cut Diam, 1-1/2" Arbor Hole Diam, 2.48" Max Depth, Indexable Square-Shoulder Face Mill
Item #: 55704241
Brand: OSG
Model #: 7800809
Product Specifications
| Maximum Cutting Diameter (Inch) | 4 |
| Maximum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Cutting Diameter (mm) | 101.60 |
| Maximum Depth of Cut (Decimal Inch) | 2.4800 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | SXMT12? |
| Cutter Style | PHC |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | 78008 |
| Overall Height (Decimal Inch) | 2.4800 |
| Keyway Width (Decimal Inch) | 0.3250 |
| Hub Diameter (Decimal Inch) | 3.7790 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Maximum Cutting Diameter (Inch) | 4 |
| Maximum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Cutting Diameter (mm) | 101.60 |
| Maximum Depth of Cut (Decimal Inch) | 2.4800 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | SXMT12? |
| Cutter Style | PHC |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | 78008 |
| Overall Height (Decimal Inch) | 2.4800 |
| Keyway Width (Decimal Inch) | 0.3250 |
| Hub Diameter (Decimal Inch) | 3.7790 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| MSC Part # | 55704241 |
| Mfr Part # | 7800809 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
