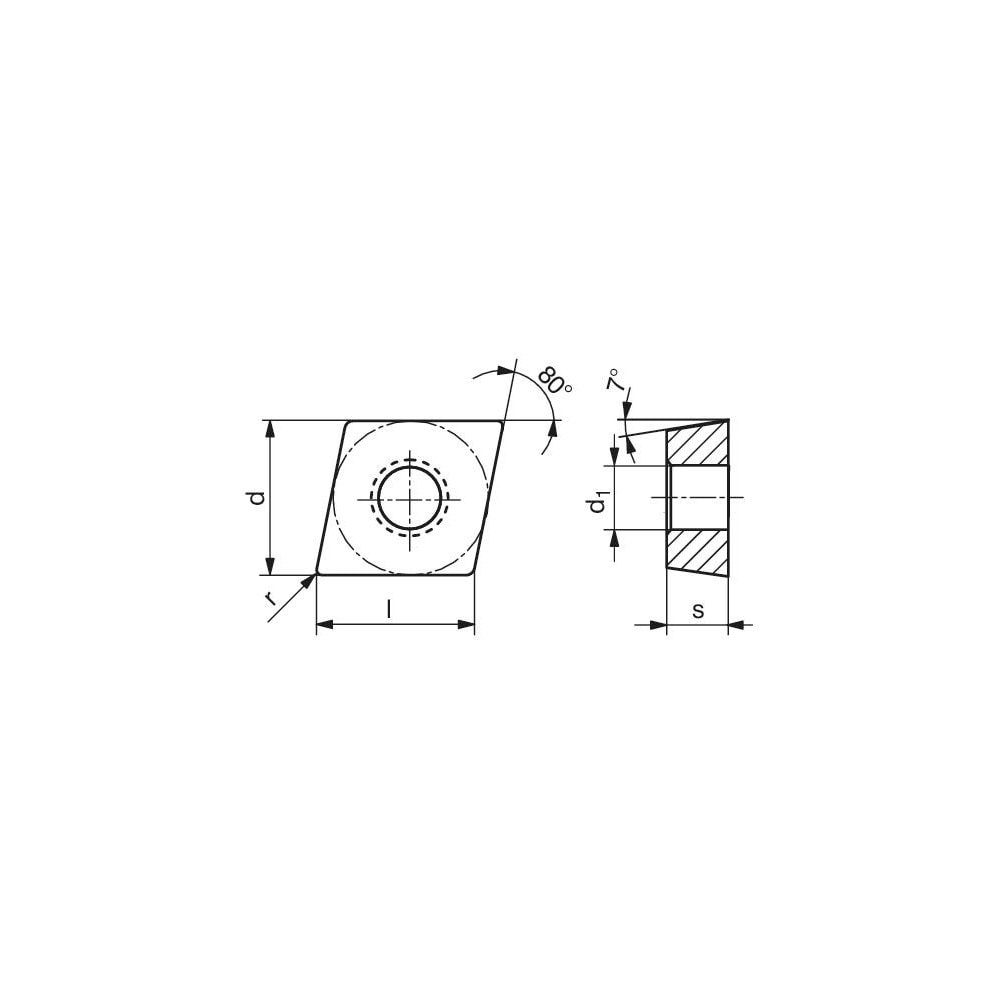

Turning Insert: CCMT433EN-MRS CT-P25, Carbide
Item #: 26295196
Brand: Ceratizit
Model #: 7530113209
Product Specifications
| ANSI Insert Code | CCMT433 |
| ISO Insert Code | CCMT120412 |
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80 |
| Manufacturer Grade | CTP25 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | CCMT |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (Decimal Inch) | 0.5079 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | CCMT 120412EN-MRS CT-P25 |
| Chip Breaker | MRS |
| ANSI Size Code | 433 |
| ISO Size Code | 120412 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 433 |
