Boring Inserts; Insert Style: EPGT; Insert Size Code: 4.51.80.5; Insert Material: Carbide; Material Grade: P35, S15, S05, M20, M35, P20; Manufacturer Grade: SH730; Inscribed Circle (Inch): 9/64
Item #: 20882247
Brand: Tungaloy
Model #: 6837459

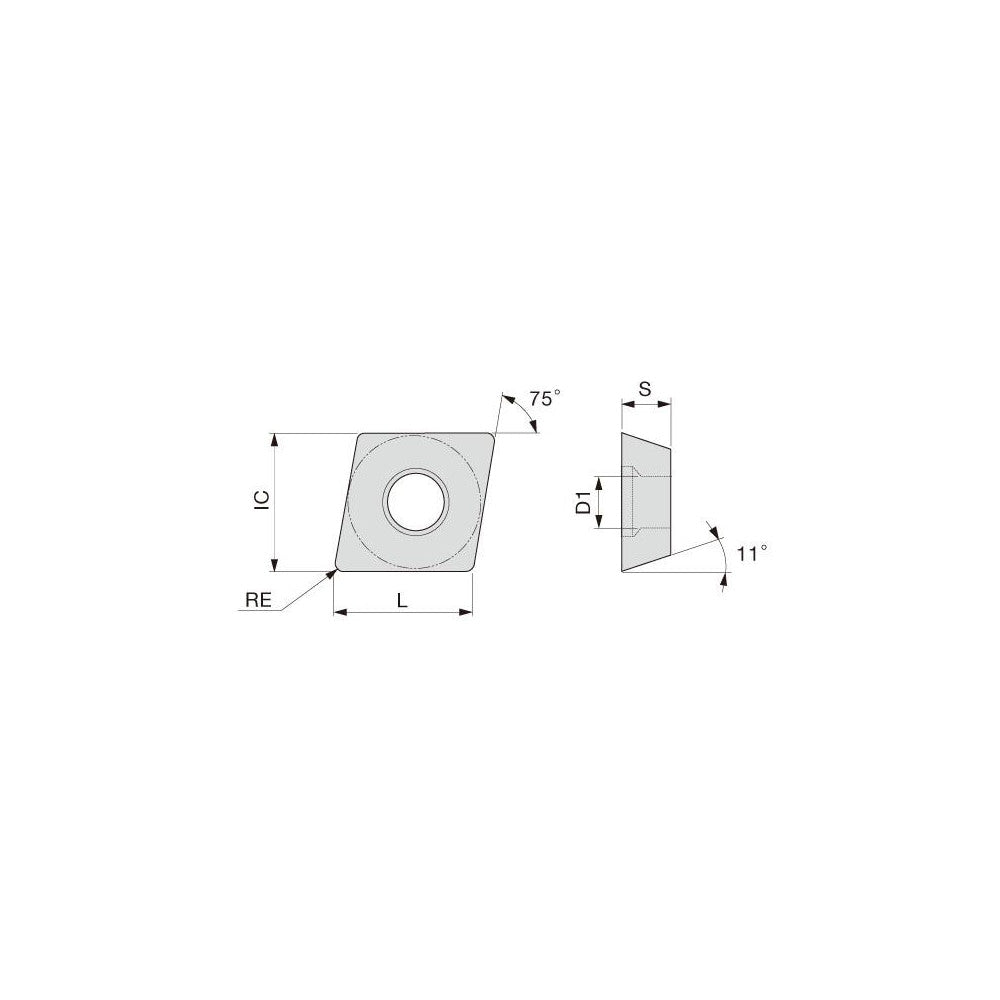

Product Specifications
| Insert Style | EPGT |
| Insert Size Code | 4.51.80.5 |
| Insert Material | Carbide |
| Material Grade | P35; S15; S05; M20; M35; P20 |
| Manufacturer Grade | SH730 |
| Inscribed Circle (Inch) | 9/64 |
| Inscribed Circle (Decimal Inch) | 0.1406 |
| Hole Diameter (Decimal Inch) | 0.0750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0078 |
| Corner Radius (Inch) | 1/128 |
| Relief Angle | 11 |
| Rake | Positive |
| Chipbreaker | JS |
| Series | EPGT-JS |
| Coating Process | PVD |
| Included Angle | 75 |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | EPGT03X102-JS SH730 |
| Standards | ISO; ANSI |
| Rake Angle | 10 |
| Manufacturers Catalog Number | 6837459 |
| Length (Decimal Inch - 4 Decimals) | 0.1460 |
| Width (Decimal Inch - 4 Decimals) | 0.1406 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23242105 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
