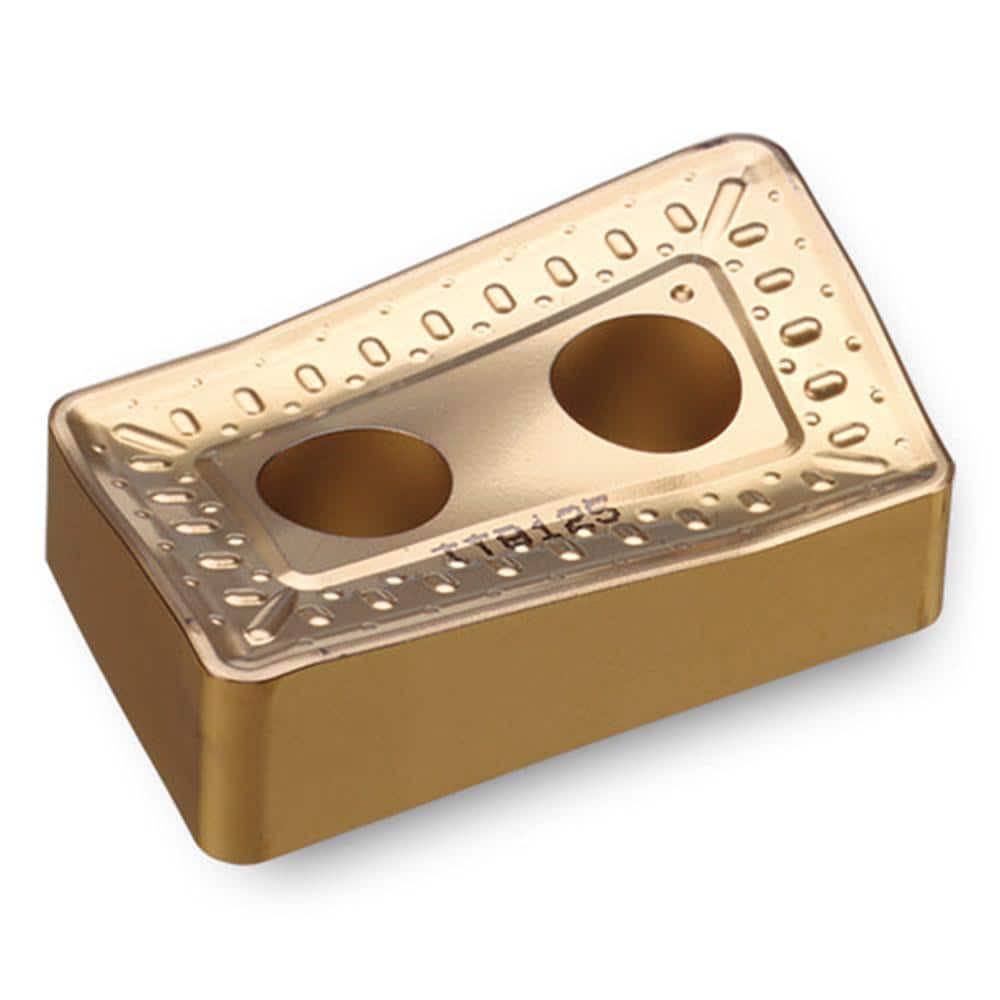

Turning Insert: LNMM401224L-HX TT8125, Solid Carbide TiCN, Al2O3 & TiN Finish, Left Hand, 1.5740″ Long, 1″ Inscribed Circle, 0.0940″ Corner Radius, 80.0 ° N/A Rectangle, Series LNMM
Item #: 37458981
Brand: Ingersoll Cutting Tools
Model #: 5522280
Product Specifications
| Insert Style | LNMM |
| Insert Shape Code | L |
| Insert Size Code | 401224 |
| Insert Shape | Rectangle |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT8125 |
| Hole Diameter (Decimal Inch) | 0.3600 |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Insert Holding Method | Screw |
| Width (Inch) | 1 |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.4600 |
| Corner Radius (Decimal Inch) | 0.0940 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | LNMM |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 1.5740 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | LNMM401224LHXTT8125 |
| Iso Code | LNMM401224L-HX TT8125 |
| Chip Breaker | HX |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Coating/Finish | TiCN; TiN; Al2O3 |
