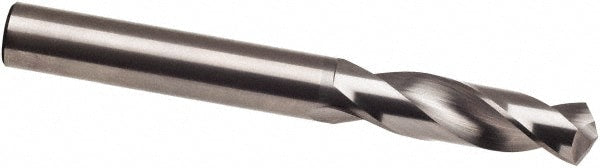

Screw Machine Length Drill Bit: 12.00 mm Dia, 118 deg Point, Solid Carbide
Item #: 58579889
Brand: Guhring
Model #: 9007300120000
Product Specifications
| Drill Bit Size (mm) | 12.00 |
| Drill Bit Size (Decimal Inch) | 0.4724 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Point Type | 4 Facet |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0157 |
| Shank Diameter (mm) | 12.00 |
| Series | 730 |
| Web Thinning | Web-Thinned |
| Proprietary Coating/Finish | Bright/Uncoated |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | h8 |
| Flute Length (mm) | 51.00 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.4500 to 0.5000 |
| Drill Bit Size Range (mm) | 11.00 - 13.50 |
| Specification Designation | DIN |
| Material Grade | Micrograin |
| UNSPSC Code | 23241635 |
| Drill Bit Size (mm) | 12.00 |
| Drill Bit Size (Decimal Inch) | 0.4724 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Point Type | 4 Facet |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0157 |
| Shank Diameter (mm) | 12.00 |
| Series | 730 |
| Web Thinning | Web-Thinned |
| Proprietary Coating/Finish | Bright/Uncoated |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | h8 |
| Flute Length (mm) | 51.00 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.4500 to 0.5000 |
| Drill Bit Size Range (mm) | 11.00 - 13.50 |
| Specification Designation | DIN |
| Material Grade | Micrograin |
| UNSPSC Code | 23241635 |
| MSC Part # | 58579889 |
| Mfr Part # | 9007300120000 |
| Country of Origin Country of Origin is subject to change | Germany |
