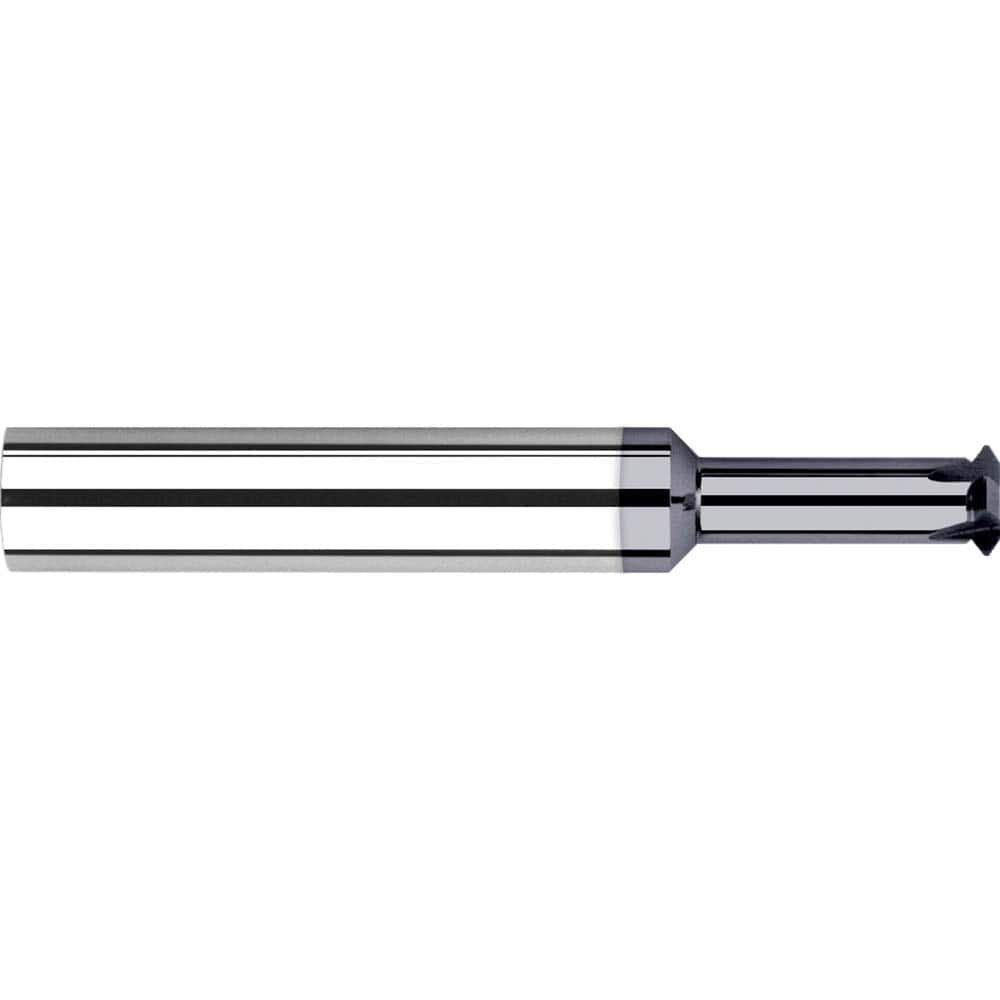

Harvey Tool - Single Profile Thread Mills; Maximum Threads Per Inch: 28 ; Minimum Threads Per Inch: 16 ; Thread Type: Internal/External ; Minimum Nominal Diameter (Inch): 3/8 ; Cutting Diameter (Inch): 0.3000 ; Shank Diameter (Inch): 3/8
Item #: 37522968
Brand: Harvey Tool
Model #: 959560-C6
Product Specifications
Single Profile Thread Mills; Maximum Threads Per Inch: 28 ; Minimum Threads Per Inch: 16 ; Thread Type: Internal/External ; Minimum Nominal Diameter (Inch): 3/8 ; Cutting Diameter (Inch): 0.3000 ; Shank Diameter (Inch): 3/8
| Maximum Threads Per Inch | 28 |
| Minimum Threads Per Inch | 16 |
| Thread Type | Internal/External |
| Minimum Nominal Diameter (Inch) | 3/8 |
| Cutting Diameter (Inch) | 0.3000 |
| Shank Diameter (Inch) | 3/8 |
| Material | Solid Carbide |
| Number of Flutes | 5 |
| Neck Diameter (Decimal Inch) | 0.2270 |
| Neck Length (Decimal Inch) | 1.2500 |
| Thread Size | 3/8-16 - 3/8-28 |
| Overall Length (Decimal Inch) | 2.50000 |
| Overall Length (Inch) | 2-1/2 |
| Thread Standard | UN 60 Degrees |
| Finish/Coating | AlTiN Nano |
