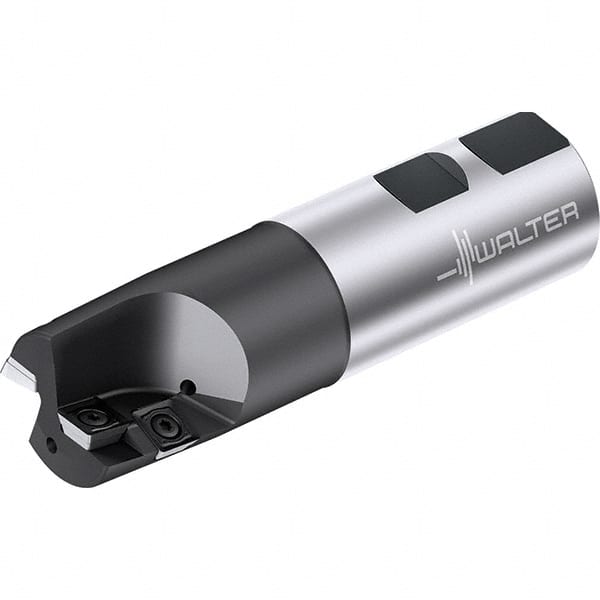

Walter - 3/4" Cut Diam, 13.6mm Max Depth of Cut, 1" Shank Diam, 91.97mm OAL, Indexable Square Shoulder End Mill - Weldon Shank, 0° Lead Angle, Through Coolant, Series M4792-UW
Item #: 37542164
Brand: Walter
Model #: 6866209
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 19.05 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (mm) | 91.97 |
| Overall Length/Projection (Decimal Inch) | 3.6210 |
| Lead Angle | 0 |
| Series | M4792-UW |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 13.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.535 |
| Number of Cutter Inserts | 1 |
| Number of Flutes | 1 |
| Maximum RPM | 999999 |
| Toolholder Material | Steel |
