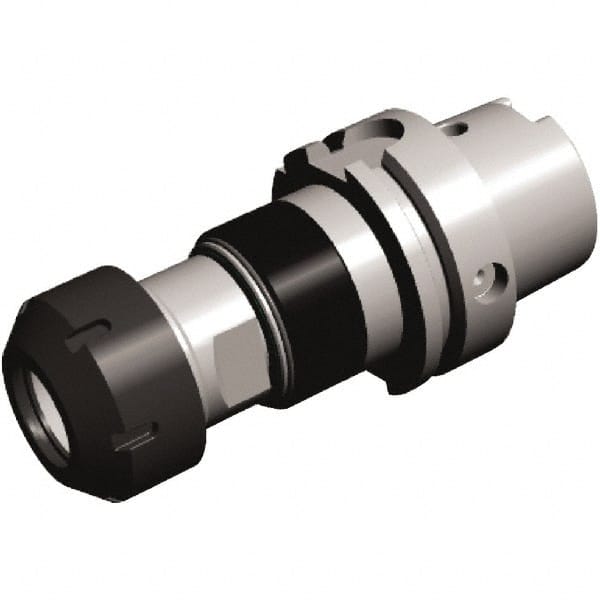

Kennametal - 63mm HSK63A Taper Shank Diam Tension & Compression Tapping Chuck - M4.5 to M12 Tap Capacity, 99.1mm Projection, Through Coolant
Item #: 37572286
Brand: Kennametal
Model #: 5525685
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Shank Diameter (mm) | 63.00 |
| Minimum Tap Capacity (mm) | M4.5 |
| Maximum Tap Capacity (mm) | M12 |
| Projection (Decimal Inch) | 3.9020 |
| Projection (mm) | 99.10 |
| Quick Change | No |
| Collet Series | ER20 |
| Nose Diameter (mm) | 34.00 |
| Nose Diameter (Decimal Inch) | 1.3390 |
| Tension (mm) | 0.50 |
| Compression (Decimal Inch) | 0.0200 |
| Compression (mm) | 0.50 |
| Overall Length (mm) | 131.10 |
| Overall Length (Decimal Inch) | 5.1610 |
| Through Coolant | Yes |
