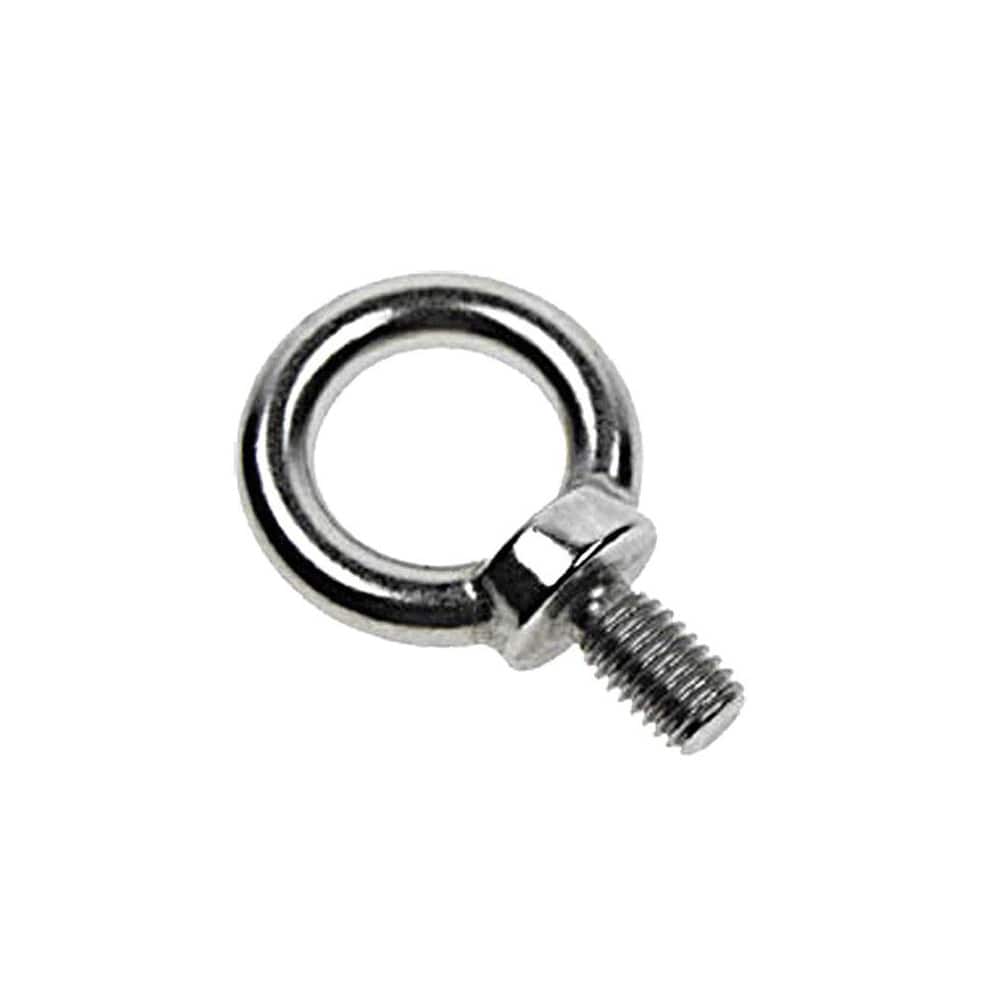

Fixed Lifting Eye Bolt: Without Shoulder, 3,800 lb Capacity, 5/8 ™ Thread, Grade 316 Stainless Steel Fully Threaded, 1-1/16″ Shank, 1-1/16″ Thread Length
Item #: 37587029
Brand: US Cargo Control
Model #: MSSEB58X1-116
Product Specifications
| Eye Bolt Type | Fixed |
| Shoulder Type | Without Shoulder |
| Lifting Capacity (Lb.) | 3800.00 |
| Eye Inside Diameter (Decimal Inch) | 1.3750 |
| Eye Inside Diameter (Inch) | 1-3/8 |
| Eye Outside Diameter (Decimal Inch) | 2.3125 |
| Eye Outside Diameter (Inch) | 2-5/16 |
| Thread Size | 5/8 in |
| Thread Length (Inch) | 1-1/16 |
| Full or Partial Threading | Fully Threaded |
| Thread Length (Decimal Inch) | 1.0625 |
| Overall Length (mm) | 3.38 |
| Overall Length (Decimal Inch) | 3.3800 |
| Shank Length (Inch) | 1-1/16 |
| Shank Diameter (Inch) | 5/8 |
| Material | 316 Stainless Steel |
