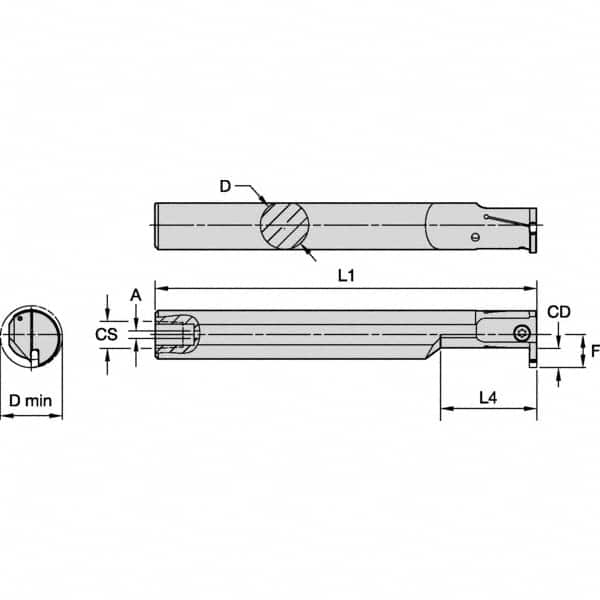

Kennametal - 25mm Min Bore Diam, 180mm OAL, 20mm Shank Diam, A-EVE Indexable Boring Bar - 40mm Max Bore Depth, EG0160M1FP02 Insert
Item #: 37736824
Brand: Kennametal
Model #: 5980629
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-EVE |
| Series | Beyond Evolution |
| Minimum Bore Diameter (mm) | 25.00 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 40.00 |
| Overall Length (mm) | 180.00 |
| Shank Diameter (mm) | 20.00 |
| Insert Compatibility | EG0160M1FP02 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Cut-Off |
| Number of Inserts Used on Toolholder | 1 |
| Rake | Negative |
| Lead Angle | 90 |
| Back of Bar to Cutting Edge (mm) | 7.00 |
| Rake Angle | -3 |
| Toolholder Material | Steel |
