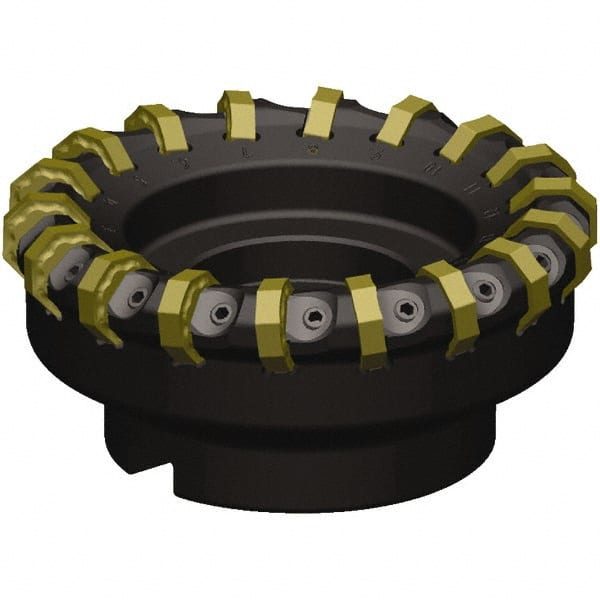

Kennametal - 5" Cut Diam, 1-1/2" Arbor Hole, 5.5mm Max Depth of Cut, 46.5° Indexable Chamfer & Angle Face Mill - 18 Inserts, ON.X080608.. Insert, Right Hand Cut, 18 Flutes, Series MILL 16
Item #: 37737426
Brand: Kennametal
Model #: 6002123
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (mm) | 127.00 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (mm) | 38.12 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 46.5 |
| Overall Height (Inch) | 2-3/8 |
| Overall Height (Decimal Inch) | 2.3750 |
| Insert Compatibility | ON.X080608.. |
| Series | MILL 16 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2150 |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Wedge |
| Number of Flutes | 18 |
| Hub Diameter (mm) | 80.00 |
| Maximum RPM | 5900 |
| Cutting Direction | Right Hand |
| Toolholder Material | Steel |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.3750 |
| Maximum RPM | 5900 |
| Minimum Cutting Diameter (mm) | 127.00 |
| Toolholder Material | Steel |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.5000 |
