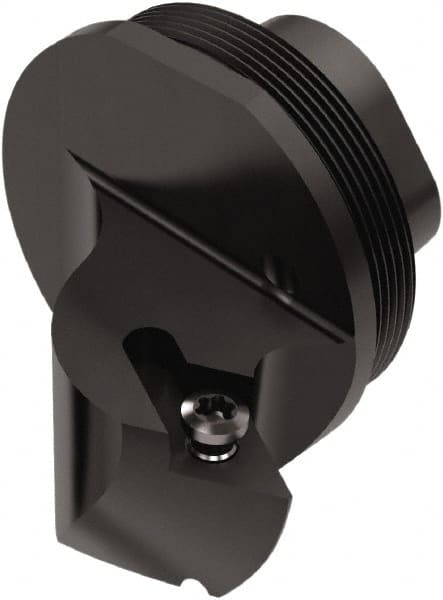

Seco - SDXCR, Right Hand Cut, 62.5° Lead Angle, 40mm Shank Height x 40mm Shank Width, Positive Rake Indexable Turning Toolholder - 25mm OAL, DC..11T3.. Insert Compatibility, Series GL
Item #: 37744240
Brand: Seco
Model #: 48938
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SDXCR |
| Rake | Positive |
| Rake Angle | 7 |
| Series | GL |
| Lead Angle | 62.5 |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 25.00 |
| Overall Length (Decimal Inch) | 0.9843 |
| Insert Compatibility | DC..11T3.. |
| Multi-Use Tool | No |
| Multi-Use Application | Turning |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 7.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2756 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Inscribed Circle (Inch) | 1/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.1250 |
| Insert Width (mm) | 3.96 |
| Insert Width (Inch) | 0.1560 |
| Insert Width (Decimal Inch) | 0.1560 |
| Toolholder Material | Steel |
