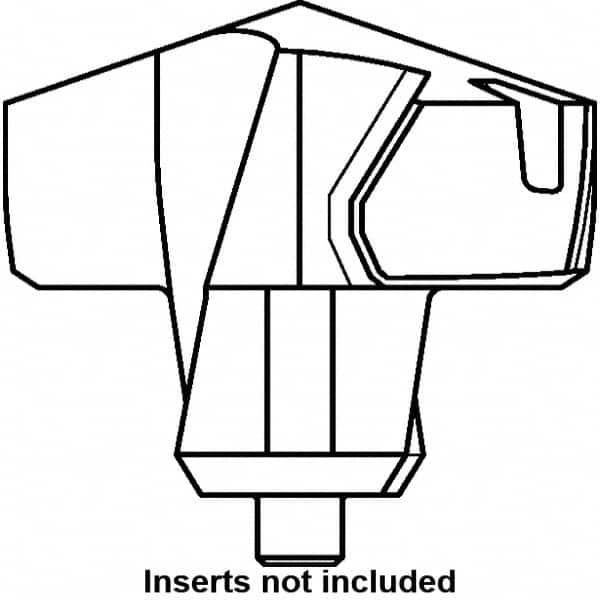

Kennametal - 18 to 18.99mm Diam, 3xD, 53mm Max Depth, 18mm Shank Diam, 66.5mm Flute, 130mm OAL, Replaceable Tip Drill - KTIP1800HPM Insert, W Seat Size, KTIP Toolholder, Series KenTIP
Item #: 37783115
Brand: Kennametal
Model #: 3324495
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 18.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Diameter (mm) | 18.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7476 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.0867 |
| Maximum Drill Depth (mm) | 53.00 |
| Shank Diameter (mm) | 18.00 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Insert Style | KTIP1800HPM |
| Insert Seat Size | W |
| Toolholder Style | KTIP |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 3.10 |
| Tip Length (Decimal Inch) | 0.1222 |
| Flute Length (mm) | 66.50 |
| Flute Length (Decimal Inch) | 2.6182 |
| Overall Length (mm) | 130.00 |
| Overall Length (Decimal Inch) | 5.1181 |
| Shank Length (mm) | 60.50 |
| Shank Length (Decimal Inch) | 2.3819 |
