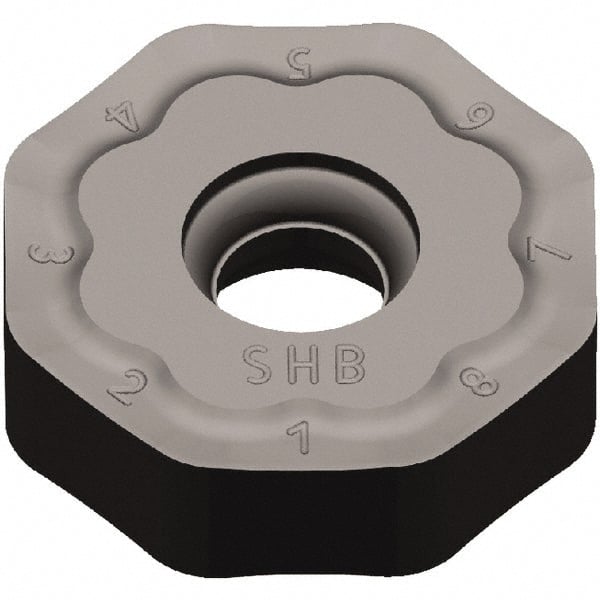

Kennametal - ONGX645 HB Grade KCK15 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 15/64" Thick, 20mm Inscribed Circle, 2mm Corner Radius
Item #: 37822905
Brand: Kennametal
Model #: 6001036
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONGX |
| Insert Size | 645 |
| Material | Carbide |
| Manufacturer's Grade | KCK15 |
| Coating | TiN/TiCN/Al2O3 |
| Length (Inch) | 21/64 |
| Length (Decimal Inch) | 0.3281 |
| Inscribed Circle (mm) | 20.00 |
| Thickness (Inch) | 15/64 |
| Thickness (Decimal Inch) | 0.2344 |
| Corner Radius (mm) | 2.00 |
| Rake Angle | 10 |
| Coating Process | CVD |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | HB |
| Manufacturers Catalog Number | ONGX645SNHB |
