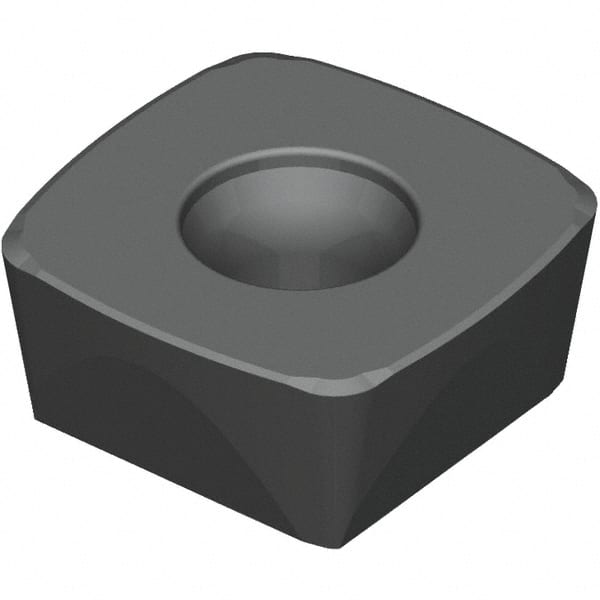

Kennametal - XDPW120515 D Grade KCPK30 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 7/32" Thick, 1/2" Inscribed Circle, 1.5mm Corner Radius
Item #: 37823663
Brand: Kennametal
Model #: 6033255
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XDPW |
| Insert Size | 120515 |
| Material | Carbide |
| Manufacturer's Grade | KCPK30 |
| Coating | TiN/TiCN/Al2O3 |
| Width (Inch) | 1/2 |
| Width (Decimal Inch) | 0.5000 |
| Length (Inch) | 1/2 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 7/32 |
| Thickness (Decimal Inch) | 0.2188 |
| Corner Radius (Decimal Inch) | 0.0580 |
| Corner Radius (mm) | 1.50 |
| Relief Angle | 9.000 |
| Coating Process | CVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | D |
| ISO Number | XDPW120515SRD |
