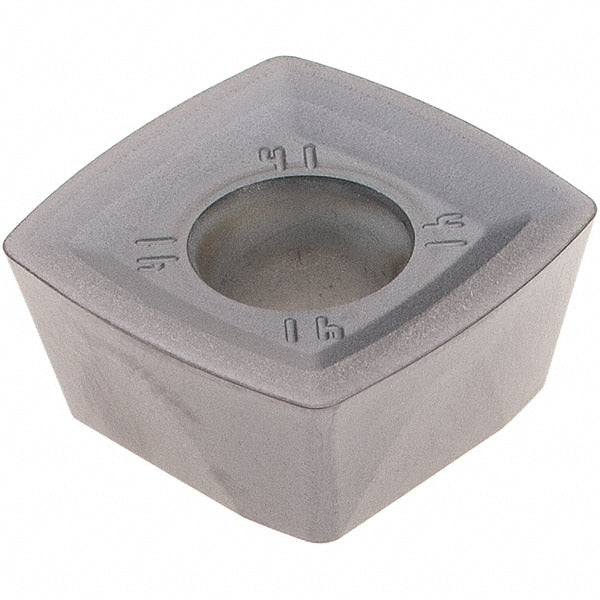

Kennametal - XDPT120508 Grade SP6519 Carbide Milling Insert - TiAlN Finish, 7/32" Thick, 1/2" Inscribed Circle, 1/32" Corner Radius
Item #: 37823853
Brand: Kennametal
Model #: 6010773
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XDPT |
| Insert Size | 120508 |
| Material | Carbide |
| Manufacturer's Grade | SP6519 |
| Coating | TiAlN |
| Width (Inch) | 1/2 |
| Width (Decimal Inch) | 0.5000 |
| Length (Inch) | 1/2 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 7/32 |
| Thickness (Decimal Inch) | 0.2188 |
| Corner Radius (Inch) | 0 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Neutral |
| ISO Number | XDPT120508ERD41 |
