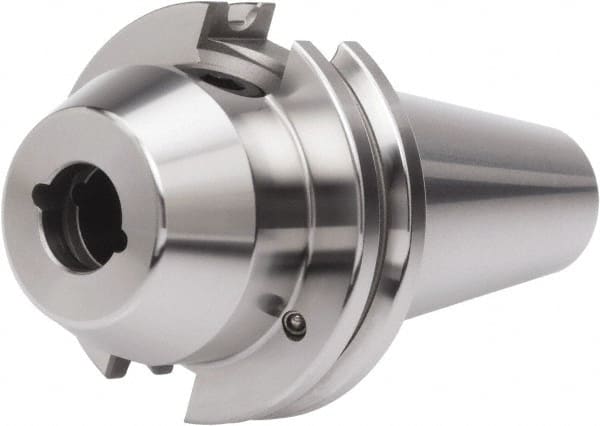

Accupro - CAT50 Taper Shank 2" Hole End Mill Holder/Adapter - 3-7/8" Nose Diam, 3-5/8" Projection, 1-8 Drawbar, Through-Spindle & DIN Flange Coolant
Item #: 37845419
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 2 |
| Nose Diameter (Inch) | 3-7/8 |
| Projection (Inch) | 3-5/8 |
| Projection (Decimal Inch) | 3.6250 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 84.84 |
| Clamping Depth (Decimal Inch) | 3.3400 |
| Overall Length (Decimal Inch) | 7.7500 |
| Balanced to (RPM) | 50000 |
| TIR (Decimal Inch) | 0.0002 |
| TIR (mm) | 0.005 |
| Coolant Type | Through-Spindle & DIN Flange |
| Drawbar Thread Size | 1-8 |
| Retention Knob Thread Size | 1-8 |
