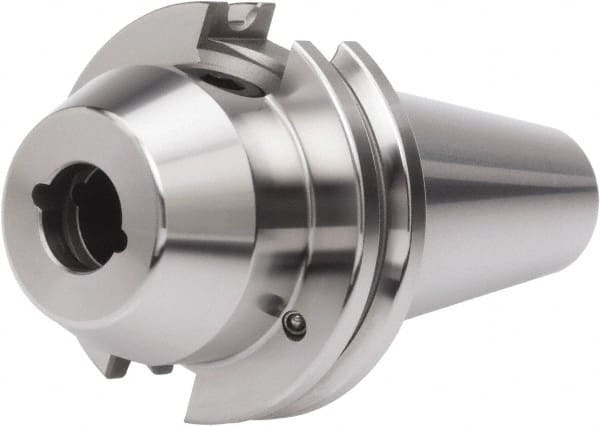

Accupro - CAT40 Taper Shank 1/2" Hole End Mill Holder/Adapter - 1-3/8" Nose Diam, 5" Projection, 5/8-11 Drawbar, Through-Spindle & DIN Flange Coolant
Item #: 37845450
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 1/2 |
| Nose Diameter (Inch) | 1-3/8 |
| Projection (Inch) | 5 |
| Projection (Decimal Inch) | 5.0000 |
| Through Coolant | Yes |
| Clamping Depth (Inch) | 1-1/2 |
| Clamping Depth (Decimal Inch) | 1.5000 |
| Overall Length (Decimal Inch) | 6.7500 |
| Balanced to (RPM) | 30000 |
| TIR (Decimal Inch) | 0.0002 |
| TIR (mm) | 0.005 |
| Coolant Type | Through-Spindle & DIN Flange |
| Drawbar Thread Size | 5/8-11 |
| Retention Knob Thread Size | 5/8-11 |
