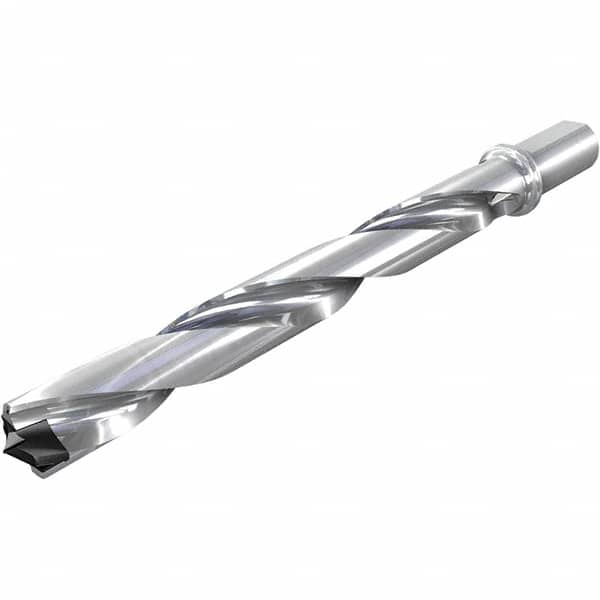

Iscar - 38 to 38.9mm Diam, 8xD, 304mm Max Drill Depth, 32mm Shank Diam, 407.8mm OAL, Replaceable Tip Drill - HFP-IQ Insert, 38 Seat Size, DFN Toolholder, Series ChamIOdrill
Item #: 37860384
Brand: Iscar
Model #: 3260028
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | ChamIOdrill |
| Minimum Drill Diameter (mm) | 38.00 |
| Maximum Drill Diameter (mm) | 38.90 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 304.00 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | HFP-IQ |
| Insert Seat Size | 38 |
| Toolholder Style | DFN |
| Shank Type | Flat Shank |
| Tip Length (mm) | 8.20 |
| Flute Length (mm) | 304.00 |
| Body Length (mm) | 347.80 |
| Overall Length (mm) | 407.80 |
| Shank Length (mm) | 60.00 |
