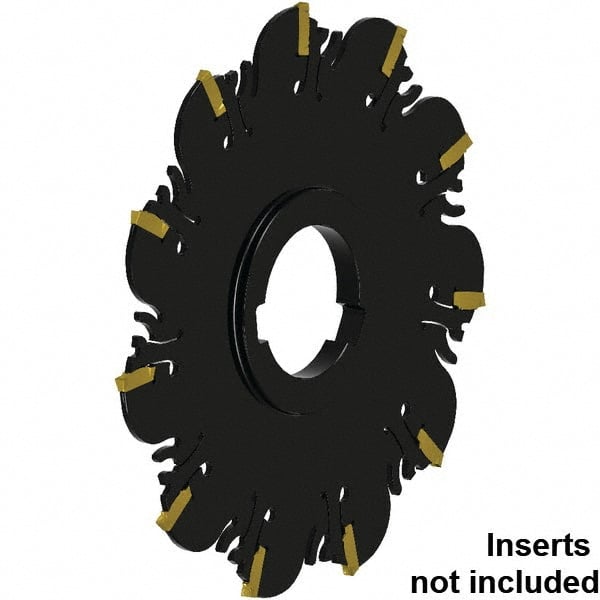

Kennametal - Arbor Connection, 1/12" Cutting Width, 65.88mm Depth of Cut, 8" Cutter Diam, 2" Hole DIam, 17 Tooth Indexable Slotting Cutter - 2" Shank Diam, FDA Toolholder, XCP21... Insert, Neutral Cutting Direction
Item #: 37902251
Brand: Kennametal
Model #: 5614868
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (mm) | 2.10 |
| Cutting Width (Decimal Inch) | 0.0830 |
| Maximum Depth of Cut (mm) | 65.88 |
| Cutter Diameter (Inch) | 8 |
| Hole Diameter (Inch) | 2 |
| Shank Diameter (Inch) | 2 |
| Number of Teeth | 17 |
| Toolholder Style | FDA |
| Series | KNS |
| Insert Style | XCP21... |
| Staggered Tooth | No |
| Number of Cutter Inserts | 17 |
| Cutting Direction | Neutral |
| Insert Holding Method | Clamp |
| Maximum RPM | 400 |
| Maximum Cutting Width (mm) | 3.20 |
| Hub Diameter (Inch) | 2-3/4 |
