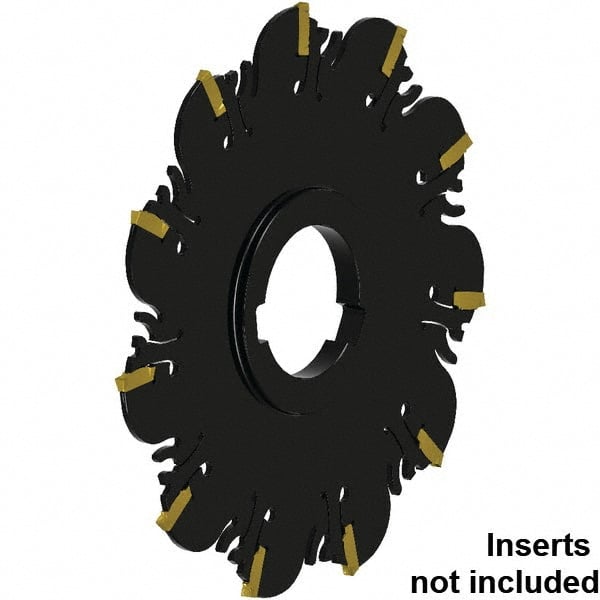

Kennametal - Arbor Connection, 1/16" Cutting Width, 29.36mm Depth of Cut, 4" Cutter Diam, 1" Hole DIam, 8 Tooth Indexable Slotting Cutter - 1" Shank Diam, FDA Toolholder, XCP16... Insert, Neutral Cutting Direction
Item #: 37903713
Brand: Kennametal
Model #: 5614863
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (mm) | 1.60 |
| Cutting Width (Decimal Inch) | 0.0630 |
| Maximum Depth of Cut (mm) | 29.36 |
| Cutter Diameter (Inch) | 4 |
| Hole Diameter (Inch) | 1 |
| Shank Diameter (Inch) | 1 |
| Number of Teeth | 8 |
| Toolholder Style | FDA |
| Series | KNS |
| Insert Style | XCP16... |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Neutral |
| Insert Holding Method | Clamp |
| Maximum RPM | 800 |
| Maximum Cutting Width (mm) | 2.50 |
| Hub Diameter (Inch) | 1-5/8 |
