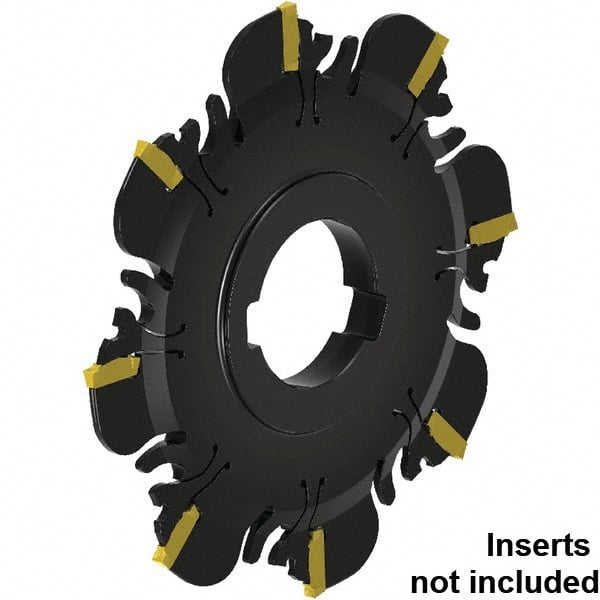

Kennametal - Arbor Connection, 0.047" Cutting Width, 3/8" Depth of Cut, 5" Cutter Diam, 1-1/4" Hole DIam, 14 Tooth Indexable Slotting Cutter - 1-1/4" Shank Diam, FDA Toolholder, XCP12... Insert, Neutral Cutting Direction
Item #: 37904158
Brand: Kennametal
Model #: 5614861
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (mm) | 1.20 |
| Cutting Width (Decimal Inch) | 0.0470 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Cutter Diameter (Inch) | 5 |
| Hole Diameter (Inch) | 1-1/4 |
| Shank Diameter (Inch) | 1 1/4 |
| Number of Teeth | 14 |
| Toolholder Style | FDA |
| Series | KNS |
| Insert Style | XCP12... |
| Staggered Tooth | No |
| Number of Cutter Inserts | 14 |
| Cutting Direction | Neutral |
| Insert Holding Method | Clamp |
| Maximum RPM | 640 |
| Maximum Cutting Width (mm) | 1.90 |
| Hub Diameter (mm) | 47.60 |
