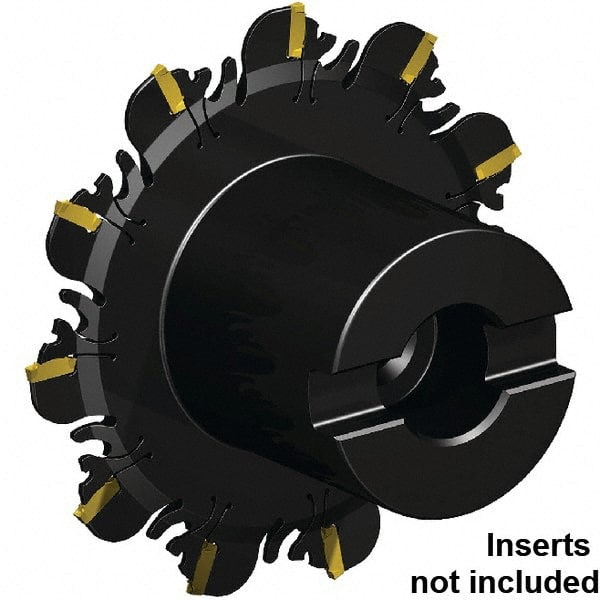

Kennametal - Shell Mount Connection, 0.047" Cutting Width, 3/8" Depth of Cut, 4" Cutter Diam, 1" Hole DIam, 11 Tooth Indexable Slotting Cutter - 1" Shank Diam, FDA Toolholder, XCP12... Insert, Right Hand Cutting Direction
Item #: 37910205
Brand: Kennametal
Model #: 5614908
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 1.20 |
| Cutting Width (Decimal Inch) | 0.0470 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Cutter Diameter (Inch) | 4 |
| Hole Diameter (Inch) | 1 |
| Shank Diameter (Inch) | 1 |
| Number of Teeth | 11 |
| Toolholder Style | FDA |
| Series | KNS |
| Insert Style | XCP12... |
| Staggered Tooth | No |
| Number of Cutter Inserts | 11 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Maximum RPM | 800 |
| Maximum Cutting Width (mm) | 1.90 |
| Hub Diameter (mm) | 55.60 |
