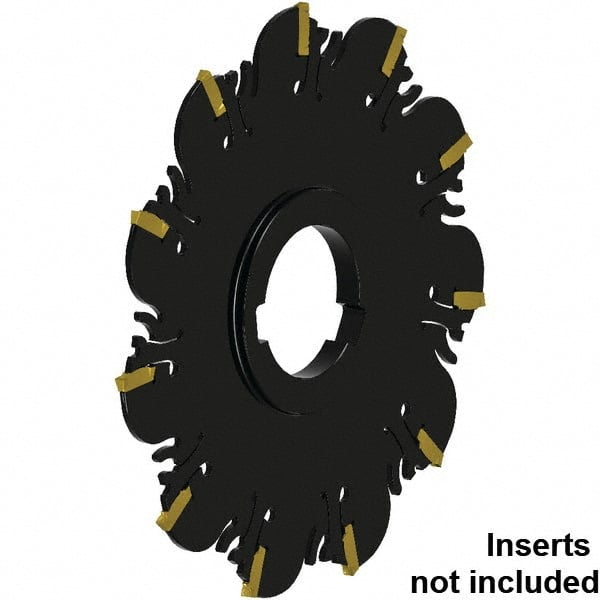

Kennametal - Arbor Connection, 0.106" Cutting Width, 29.36mm Depth of Cut, 4" Cutter Diam, 1" Hole DIam, 6 Tooth Indexable Slotting Cutter - 1" Shank Diam, FDA Toolholder, XCP27... Insert, Neutral Cutting Direction
Item #: 37911385
Brand: Kennametal
Model #: 5614869
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (mm) | 2.70 |
| Cutting Width (Decimal Inch) | 0.1060 |
| Maximum Depth of Cut (mm) | 29.36 |
| Cutter Diameter (Inch) | 4 |
| Hole Diameter (Inch) | 1 |
| Shank Diameter (Inch) | 1 |
| Number of Teeth | 6 |
| Toolholder Style | FDA |
| Series | KNS |
| Insert Style | XCP27... |
| Staggered Tooth | No |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Neutral |
| Insert Holding Method | Clamp |
| Maximum RPM | 800 |
| Maximum Cutting Width (mm) | 4.00 |
| Hub Diameter (Inch) | 1-5/8 |
