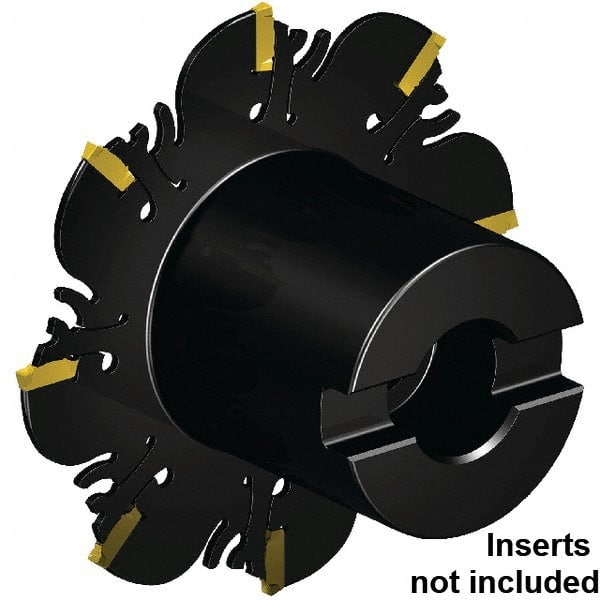

Kennametal - Shell Mount Connection, 1/12" Cutting Width, 24.7mm Depth of Cut, 100mm Cutter Diam, 22mm Hole Diam, 7 Tooth Indexable Slotting Cutter - 22mm Shank Diam, FDA Toolholder, XCP21... Insert, Right Hand Cutting Direction
Item #: 37912110
Brand: Kennametal
Model #: 5614853
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 2.10 |
| Cutting Width (Decimal Inch) | 0.0830 |
| Maximum Depth of Cut (mm) | 24.70 |
| Cutter Diameter (mm) | 100.00 |
| Hole Diameter (mm) | 22.00 |
| Shank Diameter (mm) | 22.00 |
| Number of Teeth | 7 |
| Toolholder Style | FDA |
| Series | KNS |
| Insert Style | XCP21... |
| Staggered Tooth | No |
| Number of Cutter Inserts | 7 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Maximum RPM | 800 |
| Maximum Cutting Width (mm) | 3.20 |
| Hub Diameter (mm) | 49.00 |
