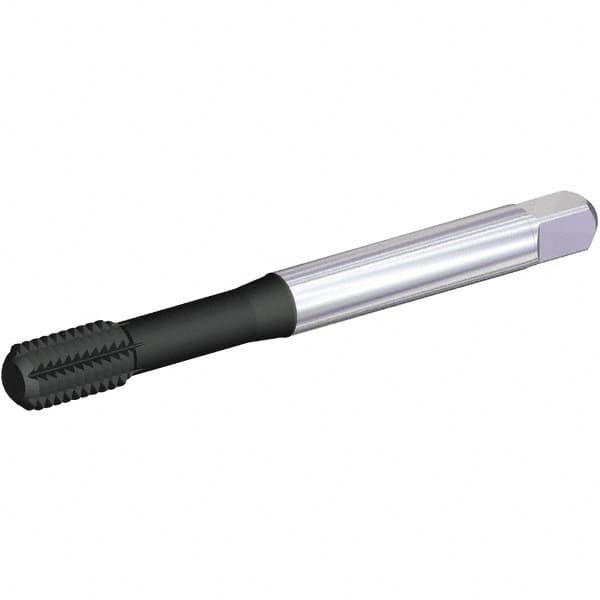

Kennametal - 5/16-18 H5 Thread Limit Bottoming Thread Forming Tap - Powdered Metal High Speed Steel, AlCrTiN Finish, 90mm OAL, 14mm Thread Length
Item #: 37921699
Brand: Kennametal
Model #: 5946057
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Aluminum Chromium Titanium Nitride (AlCrTiN) is a high heat and wear resistant multilayered PVD coating. It is designed for for enhanced tool life and superior thread finish.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 5/16-18 |
| Thread Limit | H5 |
| Chamfer | Bottoming |
| Finish/Coating | AlCrTiN |
| Material | Powdered Metal High Speed Steel |
| Overall Length (Decimal Inch) | 3.5400 |
| Overall Length (mm) | 90.00 |
| Thread Length (Decimal Inch) | 0.5500 |
| Thread Length (mm) | 14.00 |
| Neck Length (Decimal Inch) | 0.8300 |
| Neck Length (mm) | 21 |
| Tapping Depth (Decimal Inch) | 1.3800 |
| Tapping Depth (mm) | 35 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Shank Diameter (mm) | 8.08 |
| Shank Length (Decimal Inch) | 1.84 |
| Shank Length (mm) | 47 |
| Square Length (Inch) | 0.3800 |
| Square Length (mm) | 10 |
