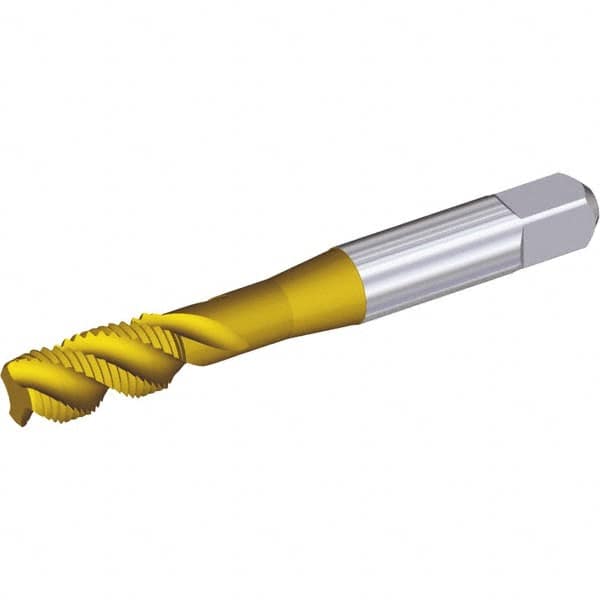

Kennametal - M3x0.50 Metric 2 Flute Modified Bottoming Spiral Flute Tap - Cobalt, TiCN/TiN Finish, 49.2mm OAL, Right Hand Flute, Right Hand Thread, D3
Item #: 37923000
Brand: Kennametal
Model #: 6140805
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M3x0.50 |
| Chamfer | Modified Bottoming |
| Thread Limit | D3 |
| Number of Flutes | 2 |
| Material | Cobalt |
| Finish/Coating | TiCN/TiN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 1.9400 |
| Overall Length (mm) | 49.20 |
| Helix Angle | 45 |
| Thread Standard | Metric |
| Thread Length (Decimal Inch) | 0.5800 |
| Thread Length (mm) | 14.80 |
| Flute Type | Fast Spiral |
| Neck Length (Decimal Inch) | 0.1700 |
| Tapping Depth (Decimal Inch) | 0.7500 |
| Tapping Depth (mm) | 19.00 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Shank Diameter (mm) | 3.58 |
| Shank Length (Decimal Inch) | 1.0830 |
| Shank Length (mm) | 28 |
| Square Length (Inch) | 0.1900 |
