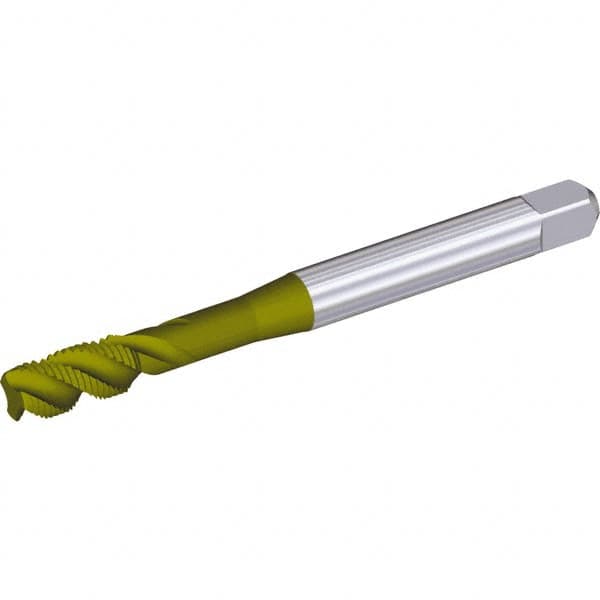

Kennametal - 3/8-16 3 Flute 2B Modified Bottoming Spiral Flute Tap - Cobalt, TiN Finish, 90mm OAL, Right Hand Flute, Right Hand Thread
Item #: 37925575
Brand: Kennametal
Model #: 6173285
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 3/8-16 |
| Chamfer | Modified Bottoming |
| Class of Fit | 2B |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.5400 |
| Overall Length (mm) | 90.00 |
| Helix Angle | 45 |
| Thread Length (Decimal Inch) | 0.5100 |
| Thread Length (mm) | 13.00 |
| Flute Type | Fast Spiral |
| Neck Length (Decimal Inch) | 0.9500 |
| Tapping Depth (Decimal Inch) | 1.4600 |
| Tapping Depth (mm) | 37.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.00 |
| Square Length (Inch) | 0.3500 |
