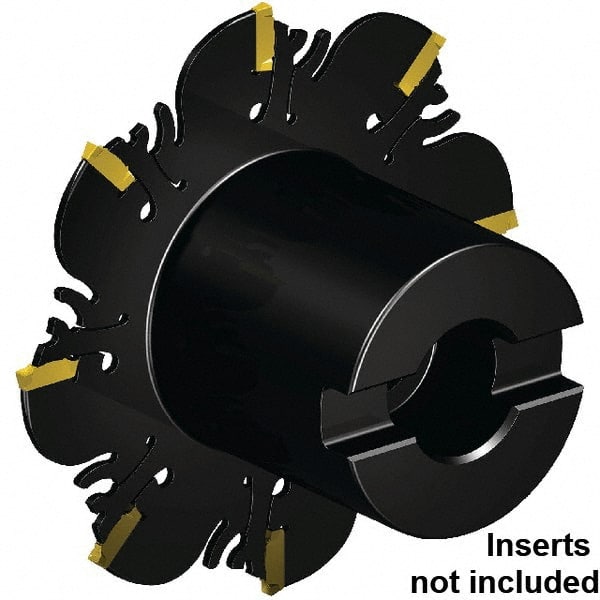

Kennametal - Shell Mount Connection, 0.201" Cutting Width, 27.77mm Depth of Cut, 5" Cutter Diam, 1-1/4" Hole DIam, 7 Tooth Indexable Slotting Cutter - 1-1/4" Shank Diam, FDA Toolholder, XCP51... Insert, Right Hand Cutting Direction
Item #: 37926144
Brand: Kennametal
Model #: 5614914
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 5.10 |
| Cutting Width (Decimal Inch) | 0.2010 |
| Maximum Depth of Cut (mm) | 27.77 |
| Cutter Diameter (Inch) | 5 |
| Hole Diameter (Inch) | 1-1/4 |
| Shank Diameter (Inch) | 1 1/4 |
| Number of Teeth | 7 |
| Toolholder Style | FDA |
| Series | KNS |
| Insert Style | XCP51... |
| Staggered Tooth | No |
| Number of Cutter Inserts | 7 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Maximum RPM | 640 |
| Maximum Cutting Width (mm) | 7.00 |
| Hub Diameter (Inch) | 2-3/4 |
