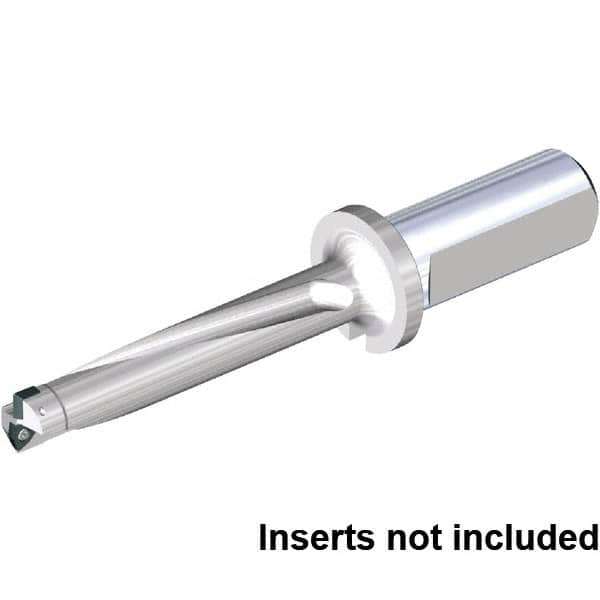

Kennametal - 72.5mm Max Drill Depth, 5xD, 14.5mm Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Straight Shank
Item #: 37971397
Brand: Kennametal
Model #: 6075713
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFSP |
| Drill Diameter (mm) | 14.50 |
| Maximum Drill Depth (mm) | 72.50 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 20.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 146.50 |
| Insert Compatibility (Outside or Peripheral) | SPGX0502.. |
| Insert Compatibility | DFTX202.. |
| Flute Length (mm) | 80.00 |
| Body Length (mm) | 96.50 |
| Shank Length (mm) | 50.00 |
