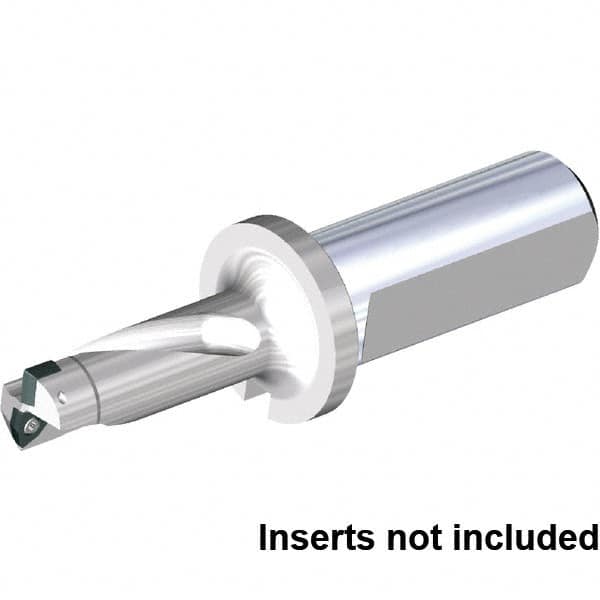

Kennametal - 51mm Max Drill Depth, 2xD, 25.5mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Straight Shank
Item #: 37972353
Brand: Kennametal
Model #: 6079914
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFSP |
| Drill Diameter (mm) | 25.50 |
| Drill Diameter (Decimal Inch) | 1.0040 |
| Maximum Drill Depth (mm) | 51.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 26.50 |
| Overall Length/Projection (mm) | 140.00 |
| Insert Compatibility (Outside or Peripheral) | SPGX0703.. |
| Insert Compatibility | DFT05T3.. |
| Flute Length (mm) | 66.00 |
| Body Length (mm) | 84.00 |
| Shank Length (mm) | 56.00 |
