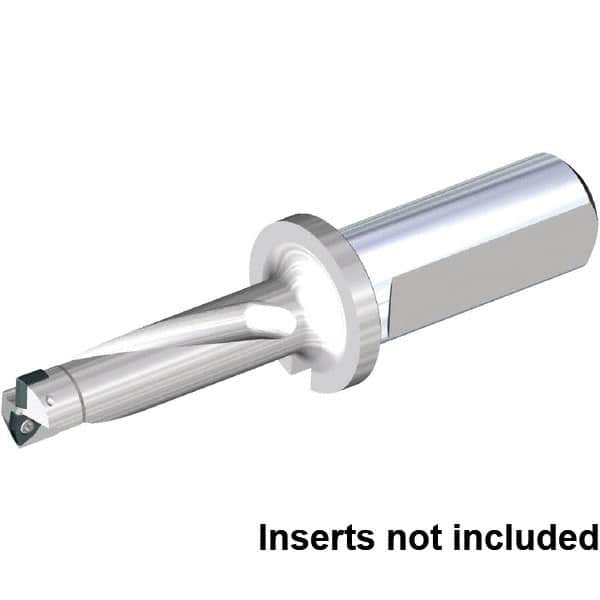

Kennametal - 120mm Max Drill Depth, 3xD, 40mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Straight Shank
Item #: 37973104
Brand: Kennametal
Model #: 6079973
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFSP |
| Drill Diameter (mm) | 40.00 |
| Drill Diameter (Decimal Inch) | 1.5750 |
| Maximum Drill Depth (mm) | 120.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 41.00 |
| Overall Length/Projection (mm) | 235.00 |
| Insert Compatibility (Outside or Peripheral) | SPPX1204.. |
| Insert Compatibility | DFT06T3.. |
| Flute Length (mm) | 147.00 |
| Body Length (mm) | 165.00 |
| Shank Length (mm) | 70.00 |
