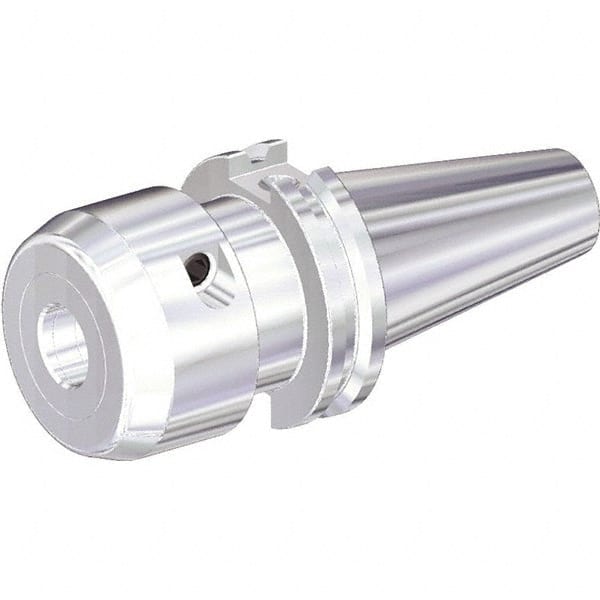

Kennametal - CAT50 Taper Shank, 1-1/4" Hole Diam, Hydraulic Tool Holder/Chuck - 80mm Nose Diam, 80mm Projection, 51mm Clamp Depth, Through Coolant
Item #: 38045241
Brand: Kennametal
Model #: 5521076
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Nose Diameter (Decimal Inch) | 3.1500 |
| Nose Diameter (mm) | 80.00 |
| Projection (Decimal Inch) | 3.1500 |
| Projection (mm) | 80.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 51.00 |
| Clamping Depth (Decimal Inch) | 2.012 |
| Overall Length (mm) | 181.60 |
