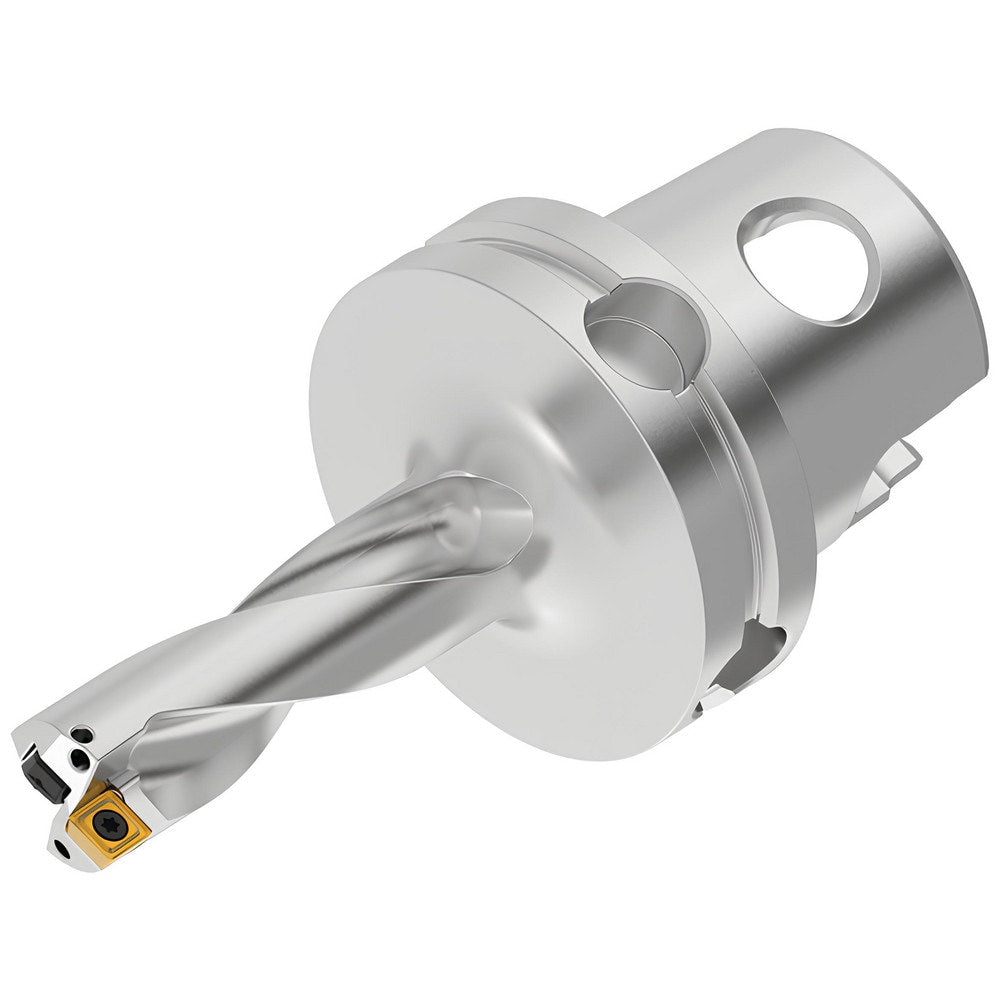

Indexable Insert Drill: DFPR0750R3KM40, 19.55 mm Max Dia, 57.15 mm Max Depth, 3xD, 40.00 mm Shank Dia
Item #: 04976148
Brand: Kennametal
Model #: 7031105
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 19.55 |
| Maximum Drill Diameter (Decimal Inch) | 0.7697 |
| Maximum Drill Depth (Inch) | 2-1/4 |
| Maximum Drill Depth (Decimal Inch) | 2.2500 |
| Maximum Drill Depth (mm) | 57.15 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 060304 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 4.2183 |
| Overall Length (Inch) | 4-7/32 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 2.2500 |
| Flute Length (mm) | 70.15 |
| Body Length | 107.10 |
| Body Length (Decimal Inch) | 3.2340 |
| Shank Length (Decimal Inch) | 0.9843 |
| Shank Length (mm) | 24.95 |
| Modular Connection Size | KM40 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2440x0.1020; 0.2560x0.1020 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR060304__I; DFPR060304__O |
| Collar Diameter (Decimal Inch) | 0.7232 |
| Collar Diameter (mm) | 18.37 |
| Insert Lock Screw | M2.2-0.45x5.2T7 |
| Coolant Through | Yes |
