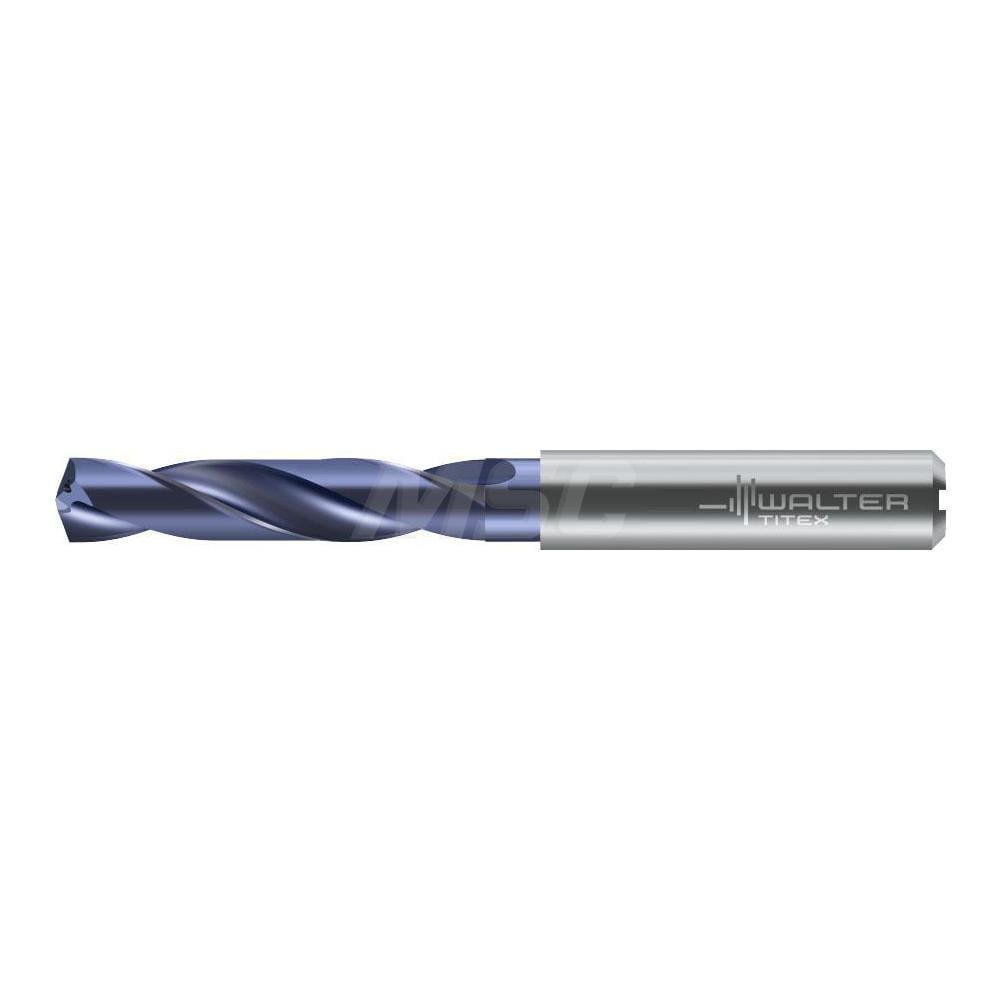

Screw Machine Length Drill Bit: 4.20 mm Dia, 140 deg Point, Solid Carbide
Item #: 47332002
Brand: Walter-Titex
Model #: 6968746
Product Specifications
| Drill Bit Size (mm) | 4.20 |
| Drill Bit Size (Decimal Inch) | 0.1654 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiNAl |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Cast Iron; Steel |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Drill Tip Finish/Coating | TiNAl |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5980 |
| Shank Diameter (mm) | 6.00 |
| Series | DC150-03-A1 |
| Proprietary Coating/Finish | TiNAl |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.6690 |
| Maximum Drilling Depth (mm) | 17.00 |
| Shank Length (Decimal Inch) | 1.4200 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 0.76 |
| Drill Point Length (Decimal Inch) | 0.0300 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; DIN |
| Flute Length (Decimal Inch) | 0.9450 |
| Flute Length (mm) | 24.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Drill Bit Size Range (mm) | 3.50 - 5.00 |
| UNSPSC Code | 23241635 |
