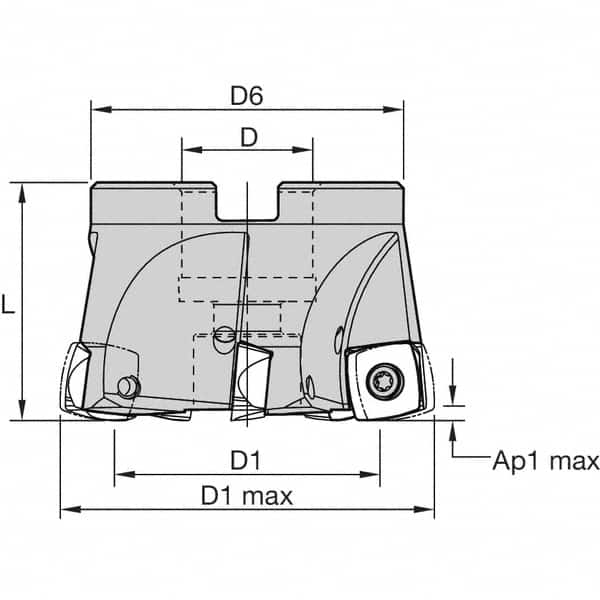

Kennametal - 9 Inserts, 3" Cutter Diam, 2.5mm Max Depth of Cut, Indexable High-Feed Face Mill - 1" Arbor Hole Diam, 50mm High, 7792VXD12 Toolholder, XD..120508 Inserts, Series 7792VX
Item #: 38067542
Brand: Kennametal
Model #: 6025584
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (mm) | 2.50 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (mm) | 50.00 |
| Series | 7792VX |
| Cutter Style | 7792VXD12 |
| Number of Cutter Inserts | 9 |
| Insert Compatibility | XD..120508 |
| Cutting Direction | Right Hand |
| Maximum RPM | 17500 |
| Number of Flutes | 9 |
| Through Coolant | Yes |
