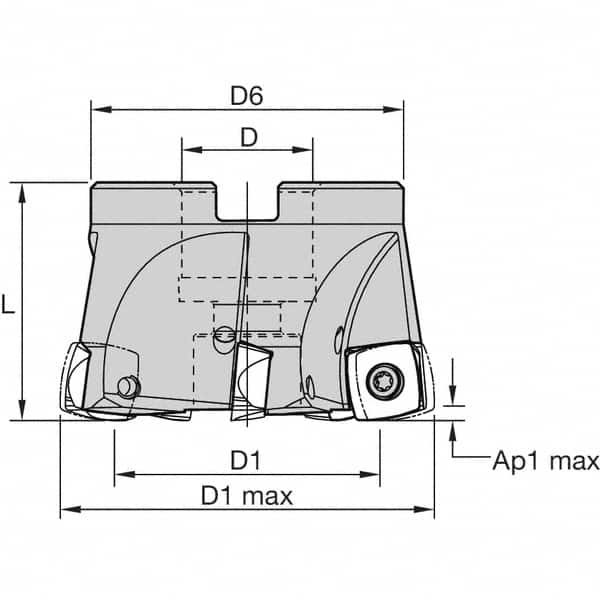

Kennametal - 11 Inserts, 4" Cutter Diam, 2.5mm Max Depth of Cut, Indexable High-Feed Face Mill - 1-1/4" Arbor Hole Diam, 50mm High, 7792VXD12 Toolholder, XD..120508 Inserts, Series 7792VX
Item #: 38067559
Brand: Kennametal
Model #: 6025585
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (mm) | 2.50 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Overall Height (mm) | 50.00 |
| Series | 7792VX |
| Cutter Style | 7792VXD12 |
| Number of Cutter Inserts | 11 |
| Insert Compatibility | XD..120508 |
| Cutting Direction | Right Hand |
| Maximum RPM | 14500 |
| Number of Flutes | 11 |
| Through Coolant | Yes |
