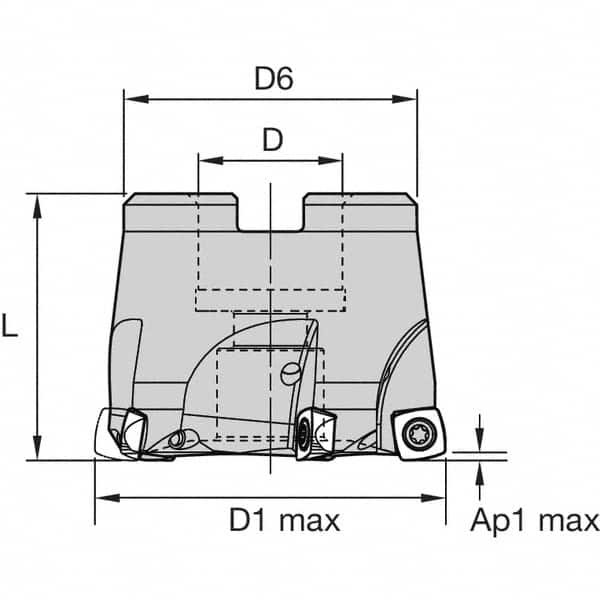

Kennametal - 5 Inserts, 40mm Cutter Diam, 1.5mm Max Depth of Cut, Indexable High-Feed Face Mill - 16mm Arbor Hole Diam, 32mm High, 7792VXD09 Toolholder, XD..09.. Inserts, Series 7792VX
Item #: 38068045
Brand: Kennametal
Model #: 5667475
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 1.50 |
| Arbor Hole Diameter (mm) | 16.00 |
| Overall Height (mm) | 32.00 |
| Series | 7792VX |
| Cutter Style | 7792VXD09 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | XD..09.. |
| Cutting Direction | Right Hand |
| Maximum RPM | 34500 |
| Number of Flutes | 5 |
| Through Coolant | Yes |
