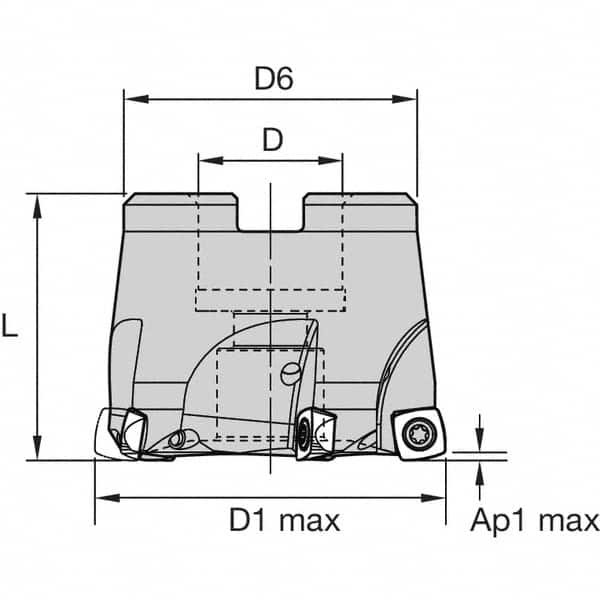

Kennametal - 5 Inserts, 52mm Cutter Diam, 1.5mm Max Depth of Cut, Indexable High-Feed Face Mill - 22mm Arbor Hole Diam, 40mm High, 7792VXD09 Toolholder, XD..090408 Inserts, Series 7792VX
Item #: 38068094
Brand: Kennametal
Model #: 6024369
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 52.00 |
| Maximum Depth of Cut (mm) | 1.50 |
| Arbor Hole Diameter (mm) | 22.00 |
| Overall Height (mm) | 40.00 |
| Series | 7792VX |
| Cutter Style | 7792VXD09 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | XD..090408 |
| Cutting Direction | Right Hand |
| Maximum RPM | 29500 |
| Number of Flutes | 5 |
| Through Coolant | Yes |
