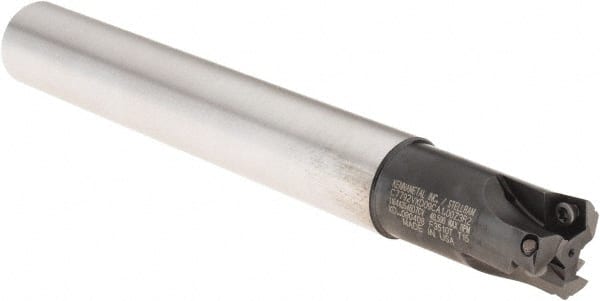

Kennametal - 1" Cut Diam, 1.5mm Max Depth, 1" Shank Diam, Cylindrical Shank Indexable High-Feed End Mill - Screw Holding Method, XD..090408 Insert, 7792VXD09 Toolholder, Through Coolant
Item #: 38068326
Brand: Kennametal
Model #: 6025590
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (mm) | 1.50 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Cutter Inserts | 3 |
| Insert Style | XD..090408 |
| Toolholder Style | 7792VXD09 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number of Flutes | 3 |
| Maximum RPM | 48000 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 8 |
| Overall Length (Decimal Inch) | 8.0000 |
