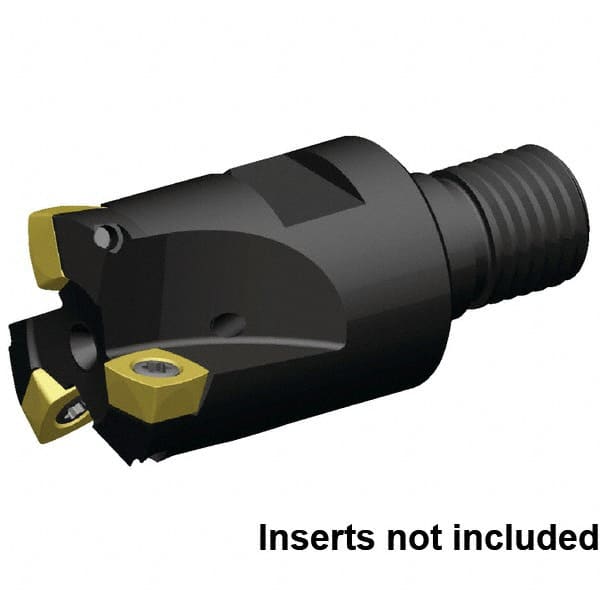

Kennametal - 25mm Cut Diam, 1.5mm Max Depth, M12 21mm Shank Diam, Modular Connection Indexable High-Feed End Mill - Screw Holding Method, XD..0904.. Insert, 7792VXD09 Toolholder, Through Coolant
Item #: 38068714
Brand: Kennametal
Model #: 5667916
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 1.50 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 21.00 |
| Modular Connection Size | M12 |
| Number of Cutter Inserts | 2 |
| Insert Style | XD..0904.. |
| Toolholder Style | 7792VXD09 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number of Flutes | 2 |
| Maximum RPM | 48500 |
| Through Coolant | Through Coolant |
| Overall Length (mm) | 57.00 |
| Modular Connection Thread Size | M12 |
