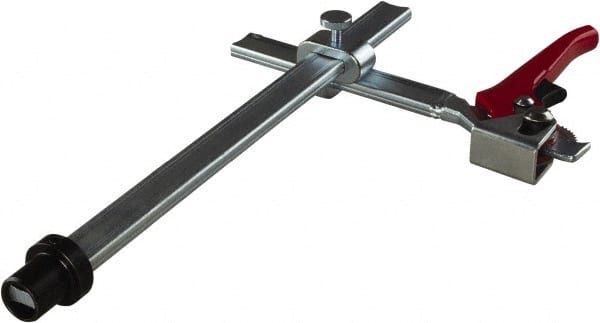

Bessey - 6" Throat Depth, 8" Max Capacity, Standard Sliding Arm Clamp - 550 Lb Clamping Pressure
Item #: 38096624
Brand: Bessey
Model #: TWV16-20-15H
Exact Tooling IR#: 04
Features and Benefits
Sliding arm clamps are used for holding a workpiece in place during an operation. The sliding arm is designed with a rail, pressure plate and sliding jaw for fast clamping action. An extender block or V-pad will be required for some applications.
Lever handles allow for quick clamping and release during an operation. They do not have threaded spindles and cannot be over tightened.
| Product Specifications | |
|---|---|
| Clamp Type | Standard |
| Maximum Capacity (mm) | 200.00 |
| Maximum Capacity (Inch) | 8 |
| Maximum Capacity (Decimal Inch) | 8.0000 |
| Maximum Capacity (cm) | 20.00 |
| Throat Depth (Inch) | 6 |
| Throat Depth (Decimal Inch) | 6.0000 |
| Throat Depth (cm) | 15.24 |
| Handle Style | Lever |
| Frame Material | Steel |
| Clamping Pressure (Lb.) | 550 |
| Rail Length (Inch) | 12 |
