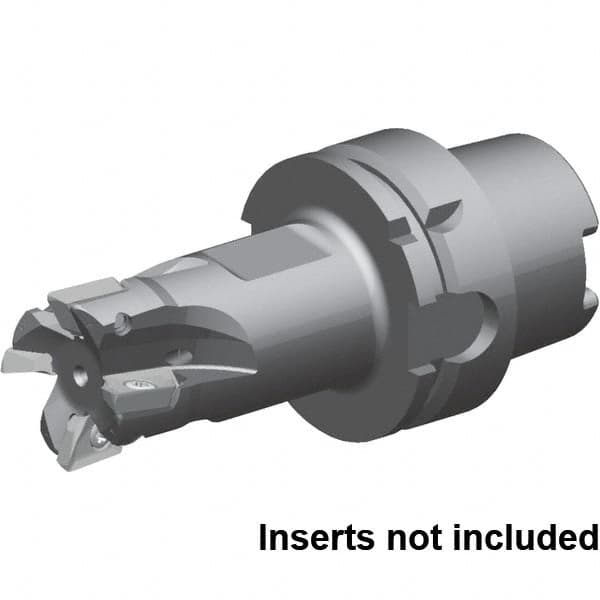

Kennametal - 32mm Cut Diam, 16mm Max Depth of Cut, 133mm OAL, Indexable Square Shoulder End Mill - ZDET16M5..721 Inserts, HSK63A Taper Shank, 0° Lead Angle, Series 5720VZ16
Item #: 38159448
Brand: Kennametal
Model #: 5672766
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Shank Type | Taper Shank |
| Shank Taper Size | HSK63A |
| Overall Length/Projection (mm) | 133.00 |
| Lead Angle | 0 |
| Series | 5720VZ16 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 16.00 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 63.00 |
| Head Length (mm) | 75.00 |
| Weldon Flat | No |
| Insert Compatibility | ZDET16M5..721 |
| Shank Length (mm) | 32.00 |
| Maximum RPM | 41500 |
| Toolholder Material | Steel |
| Coolant Hole Diameter (mm) | 7.00 |
