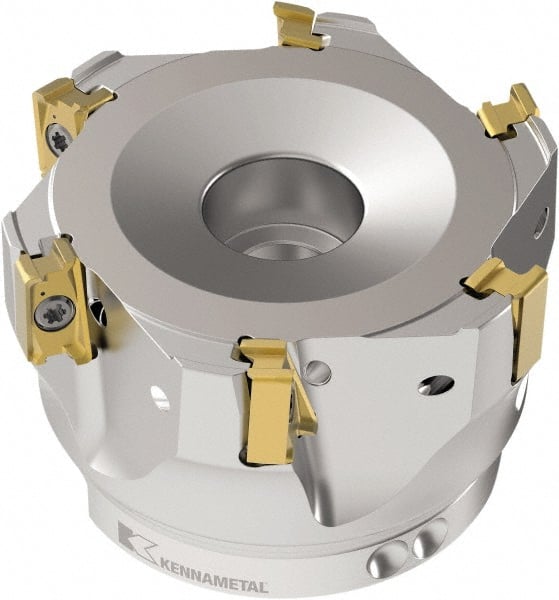

Kennametal - 1-1/4" Cut Diam, 11mm Max Depth of Cut, 2.715" OAL, Indexable Square Shoulder End Mill - LNGU110408SRGE Inserts, M16 Modular Connection, 0° Lead Angle, Through Coolant, Series Mill 4-11
Item #: 38159679
Brand: Kennametal
Model #: 6139895
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Overall Length/Projection (Inch) | 2.7150 |
| Overall Length/Projection (Decimal Inch) | 2.7150 |
| Lead Angle | 0 |
| Series | Mill 4-11 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 11.00 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 5 |
| Minimum Cutting Diameter (mm) | 29.00 |
| Head Length (Inch) | 1-3/4 |
| Head Length (Decimal Inch) | 1.7500 |
| Weldon Flat | No |
| Insert Compatibility | LNGU110408SRGE |
| Shank Length (Inch) | 0.9650 |
| Shank Length (Decimal Inch) | 0.9650 |
| Shank Length (mm) | 24.50 |
| Maximum RPM | 29200 |
| Toolholder Material | Steel |
| Coolant Hole Diameter (mm) | 4.00 |
