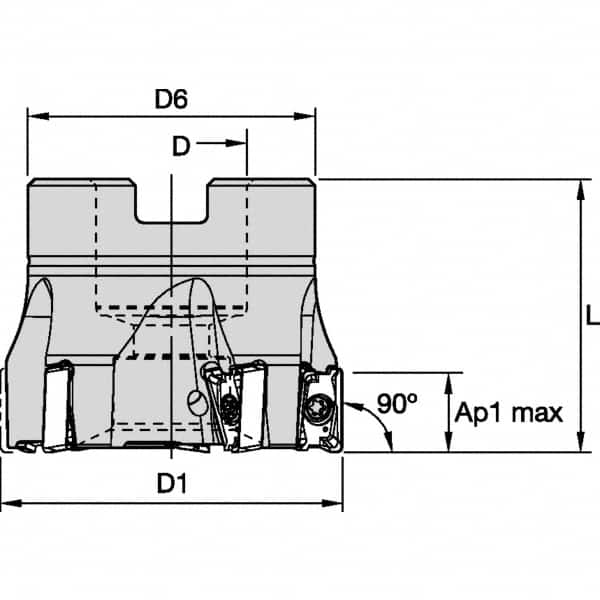

Kennametal - 7 Inserts, 2-1/2" Cut Diam, 1" Arbor Diam, 11mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 40mm High, LNGU110408SRGE Insert Compatibility, Through Coolant, Series Mill 4-11
Item #: 38160925
Brand: Kennametal
Model #: 6139923
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | LNGU110408SRGE |
| Series | Mill 4-11 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 11.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw/Clamp |
| Number of Flutes | 7 |
| Rake | Negative |
| Maximum Body Diameter (Decimal Inch) | 2.4170 |
| Maximum RPM | 19500 |
| Coolant Hole Diameter (Decimal Inch) | 0.0980 |
| Toolholder Material | Steel |
