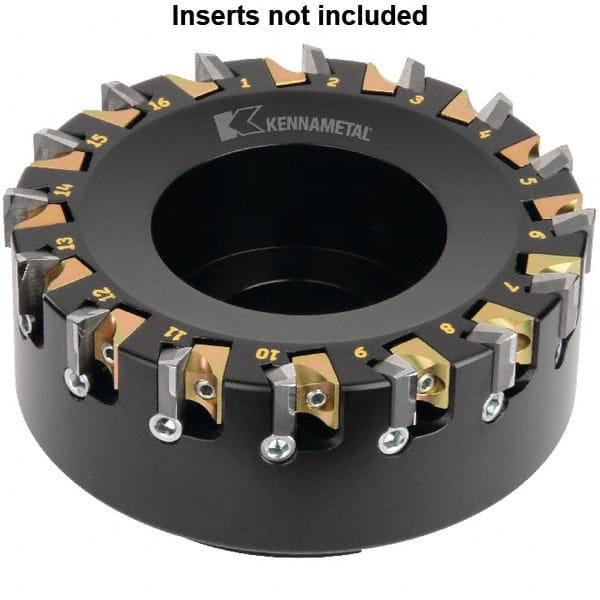

Kennametal - 12 Inserts, 100mm Cut Diam, 32mm Arbor Diam, 4.6mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 50mm High, KSDR100031E1W4S Insert Compatibility, Series KBDM
Item #: 38161048
Brand: Kennametal
Model #: 6044684
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Lead Angle | 0 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | KSDR100031E1W4S |
| Series | KBDM |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 4.60 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Wedge |
| Hub Diameter (mm) | 78.00 |
| Maximum Body Diameter (Decimal Inch) | 3.8780 |
| Number of Adjustable Pockets | 12 |
| Maximum RPM | 17320 |
| Toolholder Material | Steel |
