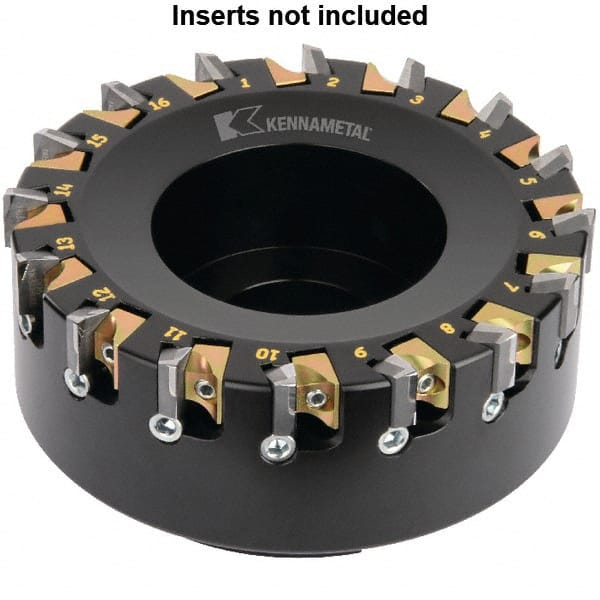

Kennametal - 16 Inserts, 125mm Cut Diam, 40mm Arbor Diam, 4.6mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 63mm High, KSDR100031E1W4S Insert Compatibility, Series KBDM
Item #: 38161055
Brand: Kennametal
Model #: 6044685
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Arbor Hole Diameter (mm) | 40.00 |
| Lead Angle | 0 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | KSDR100031E1W4S |
| Series | KBDM |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 4.60 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Wedge |
| Hub Diameter (mm) | 89.30 |
| Maximum Body Diameter (Decimal Inch) | 4.8620 |
| Number of Adjustable Pockets | 16 |
| Maximum RPM | 15500 |
| Toolholder Material | Steel |
