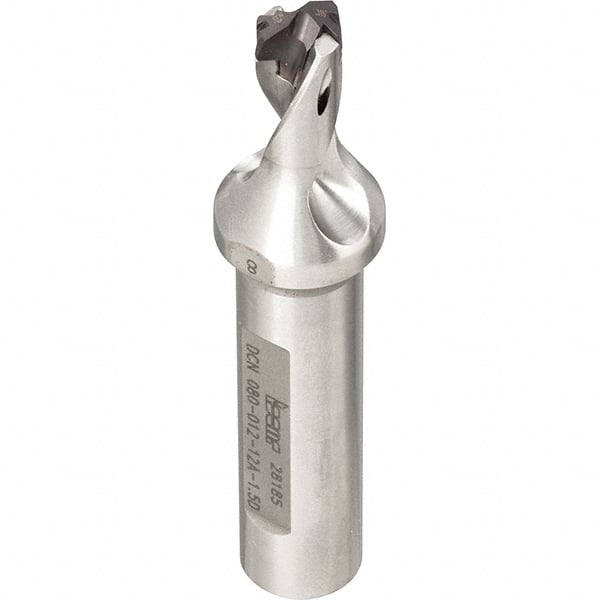

Iscar - 0.295 to 0.311" Diam, 1.5xD, 0.49" Max Drill Depth, 1/2" Shank Diam, 2.79" OAL, Replaceable Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 7 Seat Size, DCN Toolholder, Series SumoCham
Item #: 38207767
Brand: Iscar
Model #: 3203330
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.2950 |
| Maximum Drill Diameter (Decimal Inch) | 0.3110 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.4900 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Insert Seat Size | 7 |
| Toolholder Style | DCN |
| Shank Type | Cylindrical Shank |
| Tip Length (Decimal Inch) | 0.0540 |
| Flute Length (Decimal Inch) | 0.4900 |
| Body Length (Decimal Inch) | 1.0200 |
| Overall Length (Decimal Inch) | 2.7900 |
| Shank Length (Decimal Inch) | 1.7700 |
