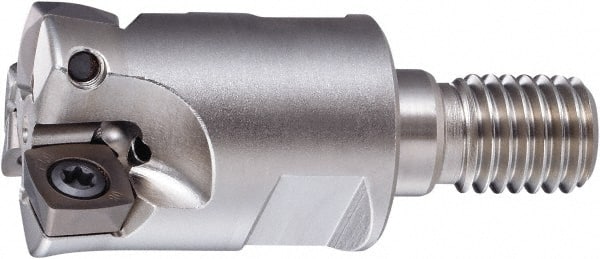

OSG - 33mm Cut Diam, 40mm Max Depth, M16 Modular Connection Indexable High-Feed End Mill - Screw Holding Method, PHC Insert, PHC Toolholder, Through Coolant
Item #: 38222022
Brand: OSG
Model #: 7801512
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 33.00 |
| Cutting Diameter (Decimal Inch) | 1.2992 |
| Maximum Depth of Cut (mm) | 40.00 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Number of Cutter Inserts | 2 |
| Insert Style | PHC |
| Toolholder Style | PHC |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number of Flutes | 2 |
| Through Coolant | Yes |
| Modular Connection Thread Size | M16 |
| Head Length (mm) | 40.00 |
