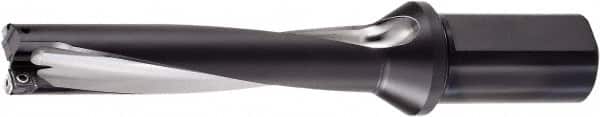

OSG - 10" Max Drill Depth, 5xD, 2" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 38223202
Brand: OSG
Model #: 52505021
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | P5D |
| Drill Diameter (Inch) | 2 |
| Drill Diameter (Decimal Inch) | 2.0000 |
| Maximum Drill Depth (Inch) | 10 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Shank Length (Decimal Inch) | 2.7560 |
| Series | 52505 |
